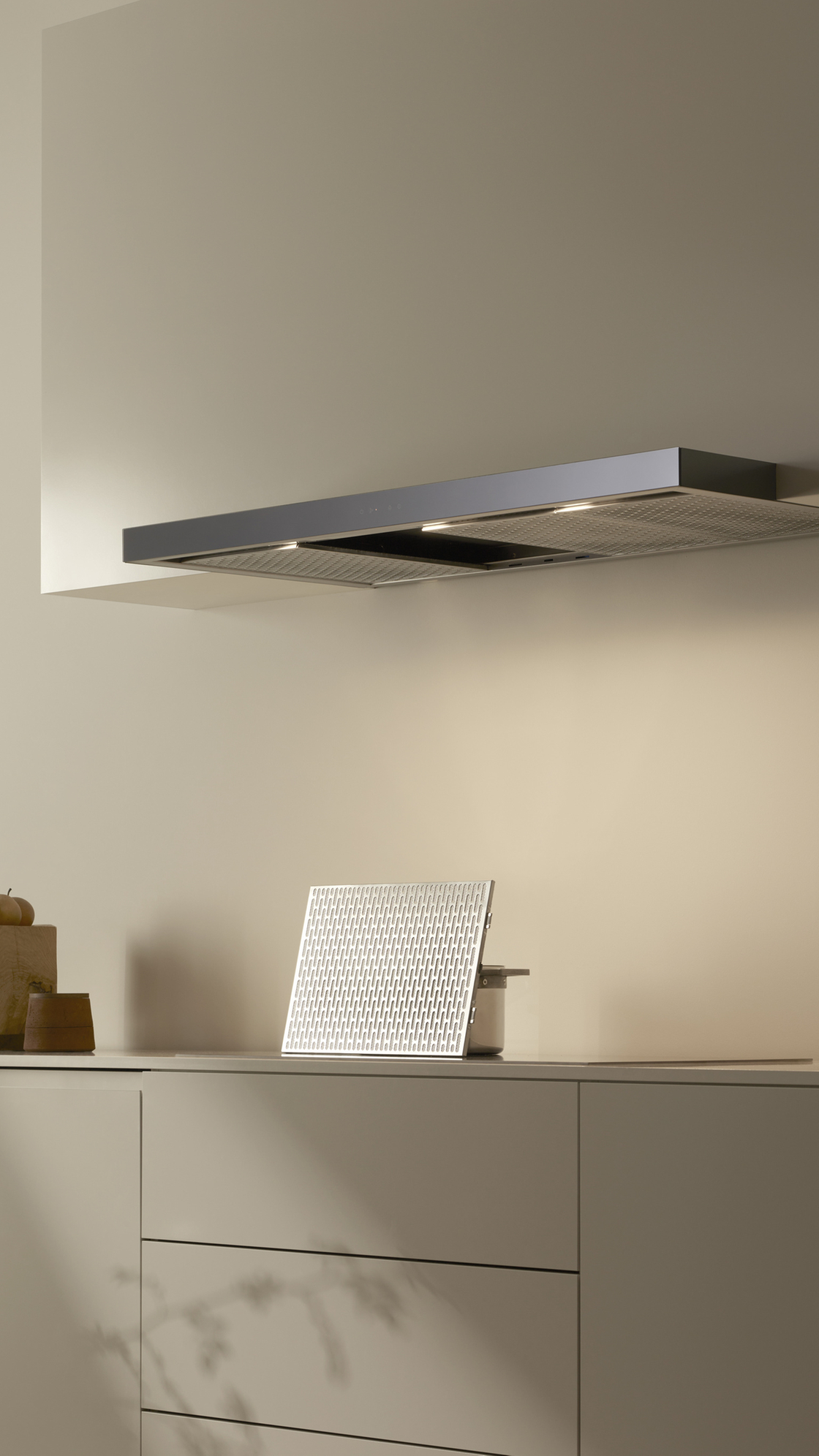

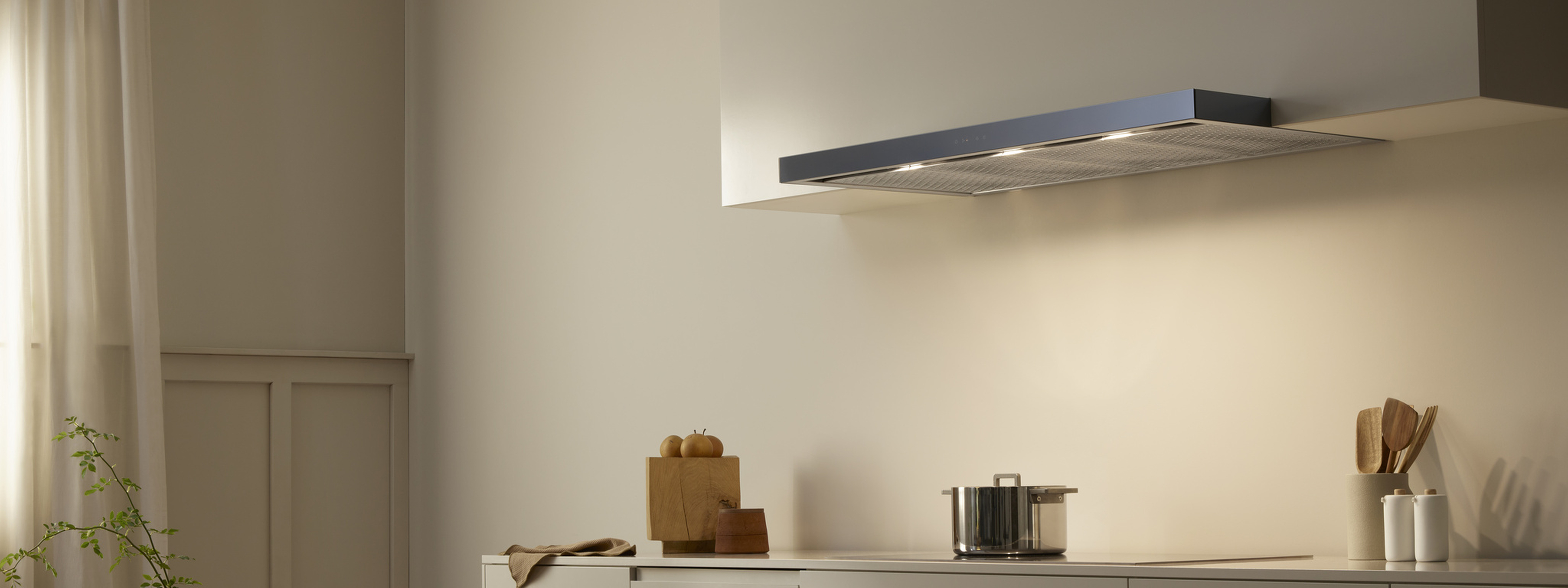

Minimalist and efficient
This elegant range hood features a slim, slide-out panel and a sleek finish. The extendable arm ensures effective vapor capture, even in the front areas of the stove. It combines maximum air purification efficiency with minimalist simplicity.

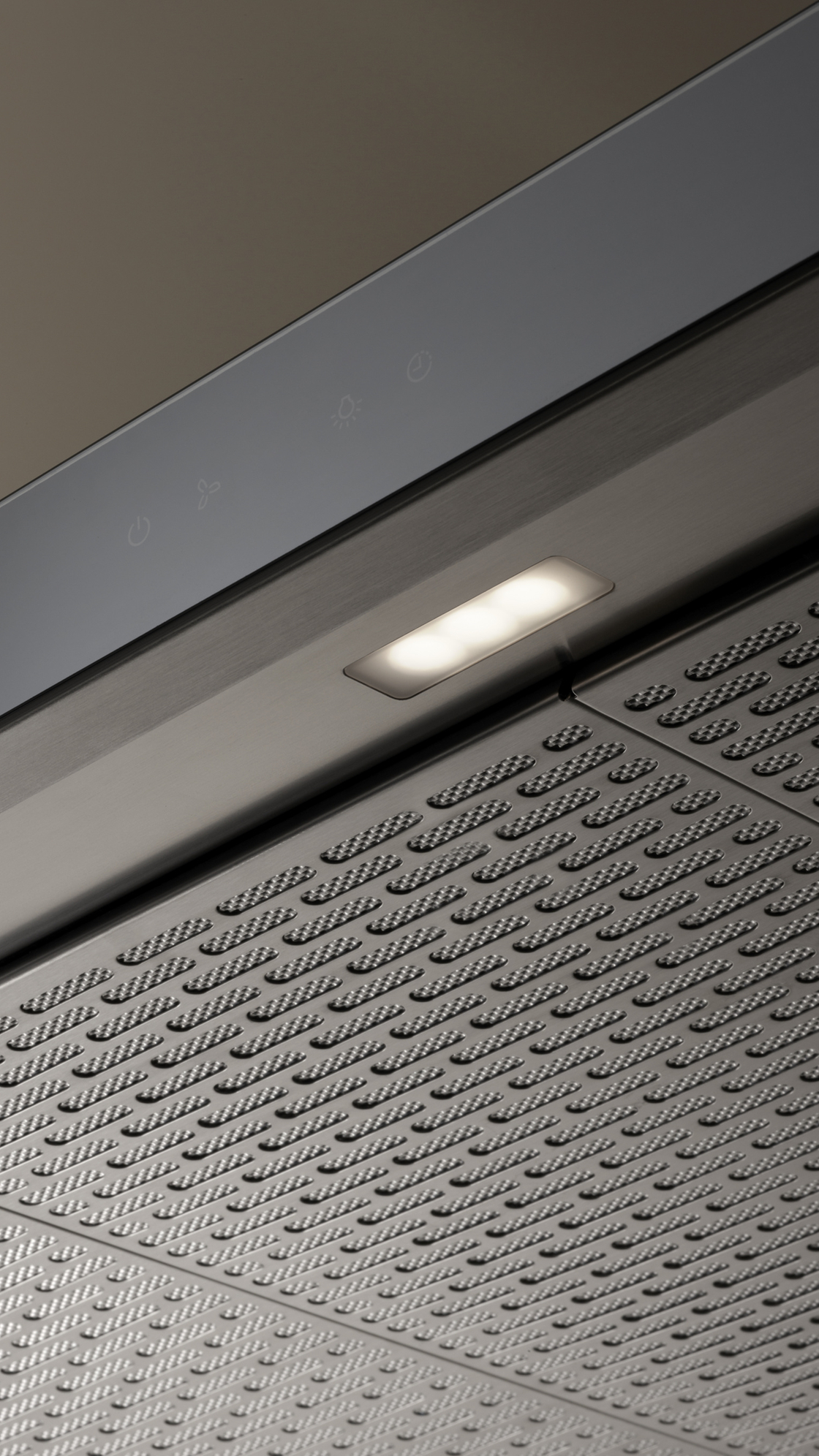

Easy Cleaning for Consistent Performance
The filters are easy to remove and dishwasher-safe to ensure effective and efficient performance throughout the product’s entire lifespan. A design developed with everyday practicality in mind.
Dimensions
Depth with extension
520.0 mm
Min. niche width
550 mm
Max. niche width
550 mm
Min. niche depth
280 mm
Appliance height
400 mm
Front height
46 mm
Device width
598 mm
Device depth
280 mm
Maximum device depth
346 mm
Declared weight of goods
16.5 kg
Energy
Standby Power Consumption
0.49 W
Power consumption outside standby mode
0 W
Light source must be replaced by a professional
Yes
Energy Efficiency Class
A+
Annual Energy Consumption
31.2 kWh
Lighting Efficiency Rating
A
Dynamic fluid efficiency
34.7
Fluid dynamic efficiency ratio
A
Rated Voltage (1)
220–240 V~
Nominal power (number x W)
1 x 7 W
Frequency (1)
50–60 Hz
Rated power (1)
0.207 kW
Fencing value (1)
10 A
Plug type
SII32
Connection cable
1.5 m
Additional data
Light color in Kelvin
Additional Information
3000 K
Exhaust air connection diameter
150 mm
Luminous efficacy
30
Illuminance on the cooking surface
119 lux
Grease separation efficiency class
B
Intensive exhaust airflow
657 m³/h
Maximum exhaust air outlet level
455 m³/h
Minimum exhaust air flow rate
250 m³/h
Airflow rate in intensive recirculation mode
384 m³/h
Maximum air output in air recirculation mode
368 m³/h
Airflow rate at minimum recirculation level
165 m³/h
Intensive airflow intensity
66 dB(A)
Maximum exhaust air sound level
63 dB(A)
Minimum exhaust air sound level
46 dB(A)
Sound Level in Intensive Air Recirculation Mode
71 dB(A)
Sound level in recirculation mode (maximum)
69 dB(A)
Sound level in minimum recirculation mode
51 dB(A)
Connection to supply/exhaust air duct
No
Connection to window contact switch
No
Connection to comfort ventilation
Additional Information
No
Number of motors
1
Rated motor power
200 W
