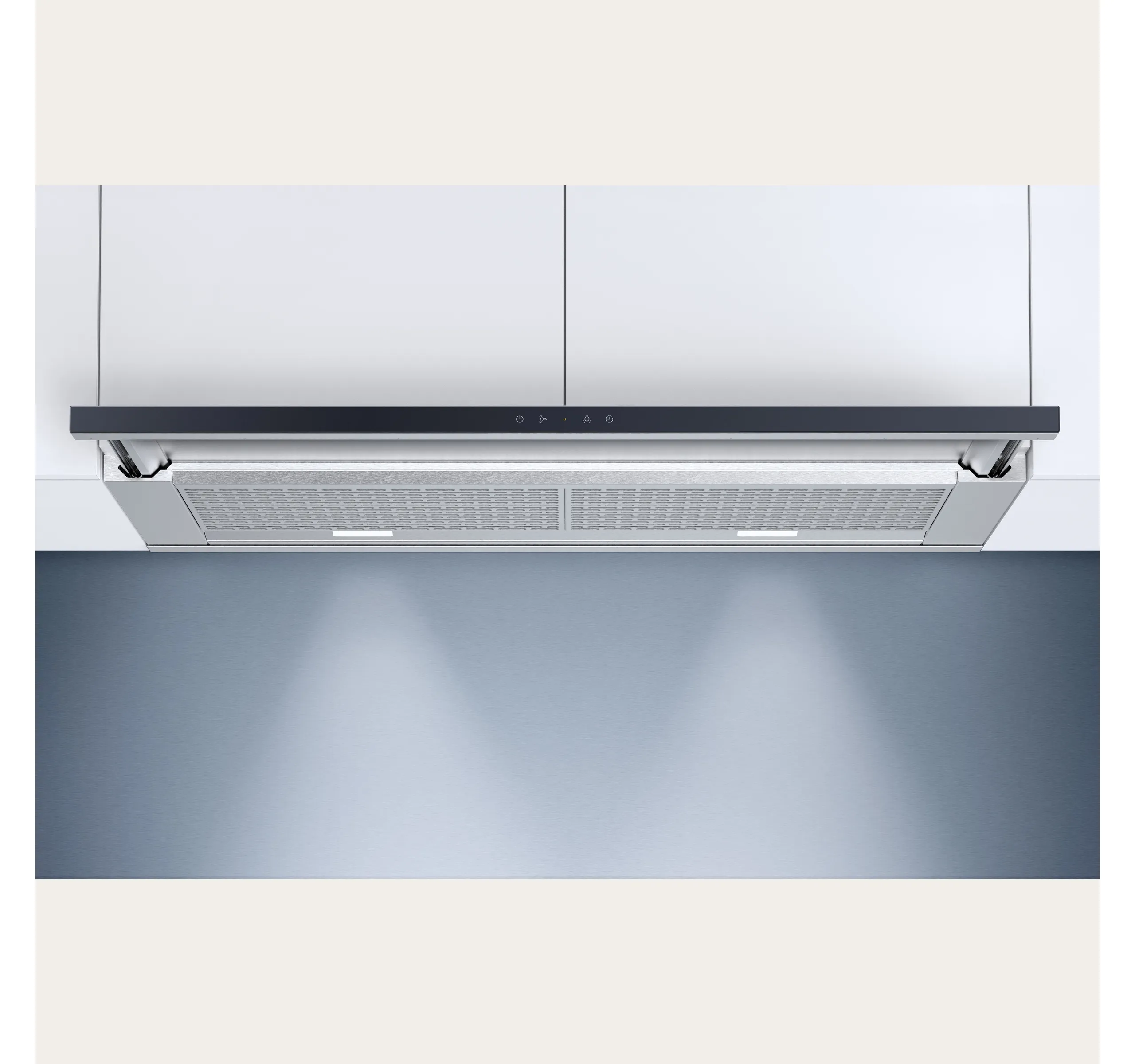

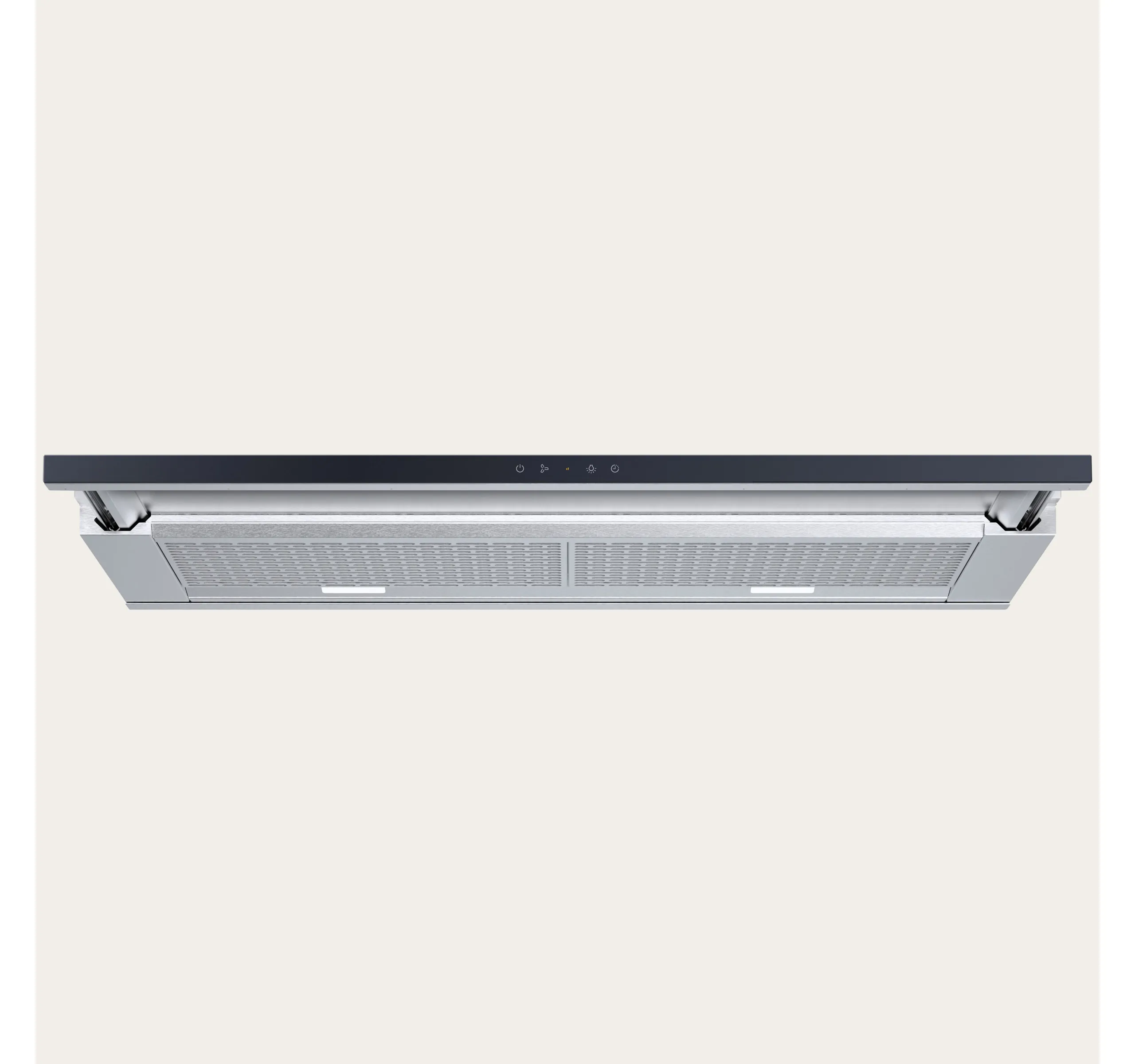

Minimalist and Efficient
This elegant range hood features a slim, slide-out panel and a sleek finish. The extendable arm helps capture steam, even in the front areas of the stove. For maximum air purification efficiency combined with minimalist simplicity.

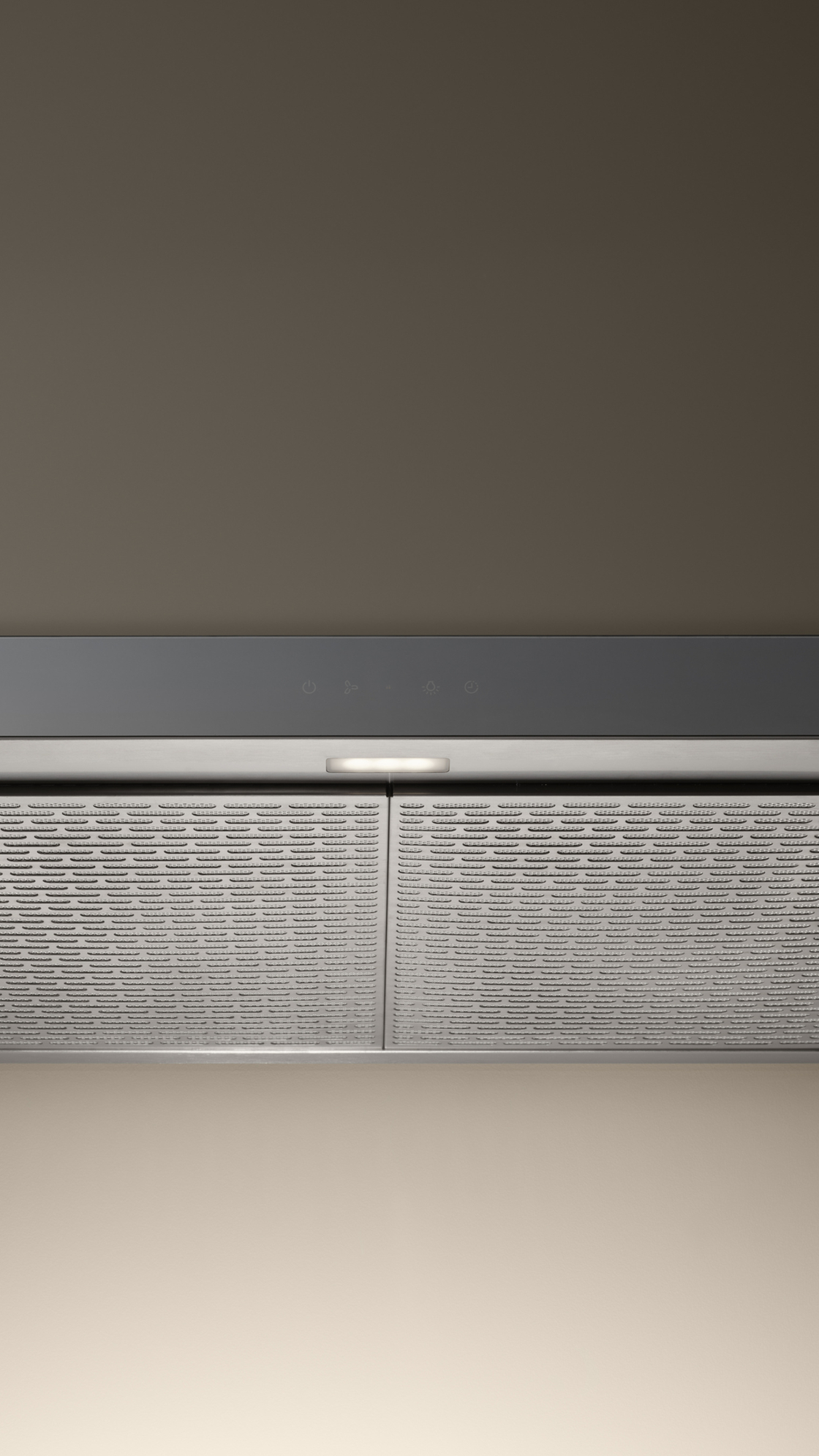

Easy Cleaning for Consistent Performance
The filters are easy to remove and dishwasher-safe to ensure effective and efficient performance throughout the product’s entire lifespan. A design developed with everyday practicality in mind.
Dimensions
Depth with extension
507.0 mm
Min. niche width
600 mm
Max. niche width
600 mm
Min. niche depth
330 mm
Appliance height
470 mm
Front height
25 mm
Device width
598 mm
Device depth
303 mm
Maximum device depth
325 mm
Declared weight of goods
21.8 kg
Energy
Standby Power Consumption
0.48 W
Power Consumption (Off)
0 W
Light source must be replaced by a professional
Yes
Energy Efficiency Class
A+
Annual Energy Consumption
31.2 kWh
Lighting Efficiency Rating
A
Dynamic fluid efficiency
34.7
Fluid dynamic efficiency ratio
A
Rated Voltage (1)
220–240 V~
Nominal power (number x W)
2 x 2 W
Frequency (1)
50–60 Hz
Rated power (1)
0.134 kW
Fencing value (1)
10 A
Plug type
SII32
Connection cable
1.2 m
Additional data
Color in Kelvin
Additional Information
2700 K
Bright color at the upper end of the Kelvin scale
4000 K
Exhaust Air Connection Diameter
150 mm
Luminous efficacy
28
Illuminance on the cooking surface
113 lux
Grease separation class
C
Intensive exhaust airflow
653 m³/h
Maximum exhaust air flow rate
452 m³/h
Minimum exhaust air flow rate
247 m³/h
Airflow rate in intensive recirculation mode
566 m³/h
Maximum air output in air recirculation mode
392 m³/h
Airflow rate at minimum recirculation level
215 m³/h
Intensive airflow intensity
64 dB(A)
Max. exhaust air sound level
53 dB(A)
Minimum exhaust air sound power level
38 dB(A)
Sound Level in Intensive Air Recirculation Mode
68 dB(A)
Sound level in recirculation mode (maximum)
57 dB(A)
Sound level in minimum air recirculation mode
42 dB(A)
Connection to supply/exhaust air duct
Yes
Connection to window contact switch
No
Connection for comfort ventilation
Additional Information
No
Number of motors
1
Rated motor power
130 W
