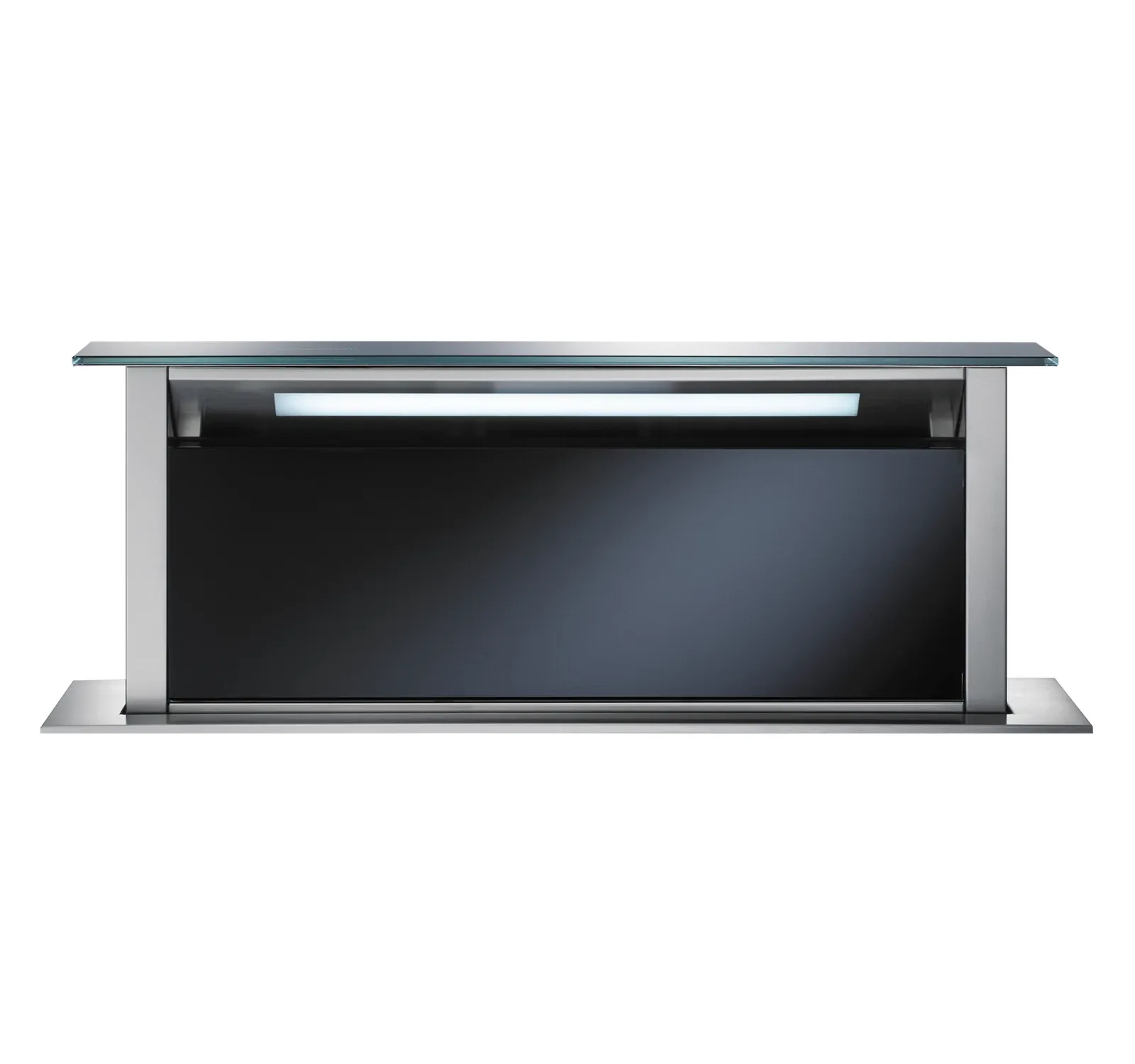

90-cm built-in range hood, Series 8, Model DD9840.0S, Kuppersbusch

37 cm, 66 cm, 88 ס״מ, kuppersbusch, Black, קופרבוש
DD9840.0S
(deepness (centimeter:
37 cm
(height (centimeter:
66 cm
(width (centimeter:
88 ס״מ
Brand:
kuppersbusch
Color:
Black
All features
  • 5 intensitylevels , including a high-intensity setting
  • Suction rate (press): Maximum normal power 430 m³/h, intensive power 700 m³/h
  • Electronic control with touch sensors
  • LED display for power levels
  • Digital display
  • Motorized, retractable range hood
  • Edge suction technology with black glass panel
  • Automatic pause function
Full description
Contact us for a price
  • 5 intensitylevels , including a high-intensity setting
  • Suction rate (press): Maximum normal power 430 m³/h, intensive power 700 m³/h
  • Electronic control with touch sensors
  • LED display for power levels
  • Digital display
  • Motorized, hinged range hood
  • Edge-suction technology with black glass panel
  • Automatic pause function

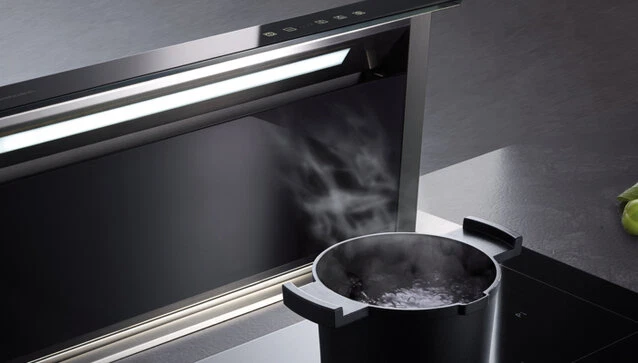

Efficient Air Intake

Our range hoods with edge extraction conceal the grease filters behind a removable stainless steel cover. The extraction area is intentionally reduced, causing air to be drawn in at a significantly faster rate than in a standard range hood. The result is increased extraction efficiency.




Down-Draft Technology

The ventilation system can be discreetly concealed within the unit’s base. The advantage of this system is that annoying operating noises are reduced to a minimum.





DD9840.0S

90-cm-long motorized range hood with 5 power settings

Intuitive setup via touch sensors
High visibility thanks to the “
” LEDdisplay Filter status monitoring with a filter saturation indicator



Features

  • 5 powerlevels , including a high-power setting
  • Airflow rate (press): maximum normal power 430 m³/h, intensive power 700 m³/h
  • Electronic control with touch sensors
  • LED display for power levels
  • Digital display
  • Motorized, retractable range hood
  • Edge-suction technology with black glass panel
  • Automatic pause function
  • Filter saturation indicator
  • Metal grease filter
  • Recirculation mode available (see optional accessories)

Dimensions

General Specifications

  • Product height (mm):657–1063
  • Product width (mm):880
  • Product depth (mm):370
  • Net Weight (kg):35.26

Electrical Connection

Electrical connection

  • Frequency (Hz):50/60
  • Voltage (V):220–240
  • Cable length (cm):100
  • Plug Type:Schuko
  • Internal power consumption (W):7
(deepness (centimeter:
37 cm
(height (centimeter:
66 cm
(width (centimeter:
88 ס״מ
Brand:
kuppersbusch
Color:
Black
Electrical Appliance Manufacturer:
קופרבוש

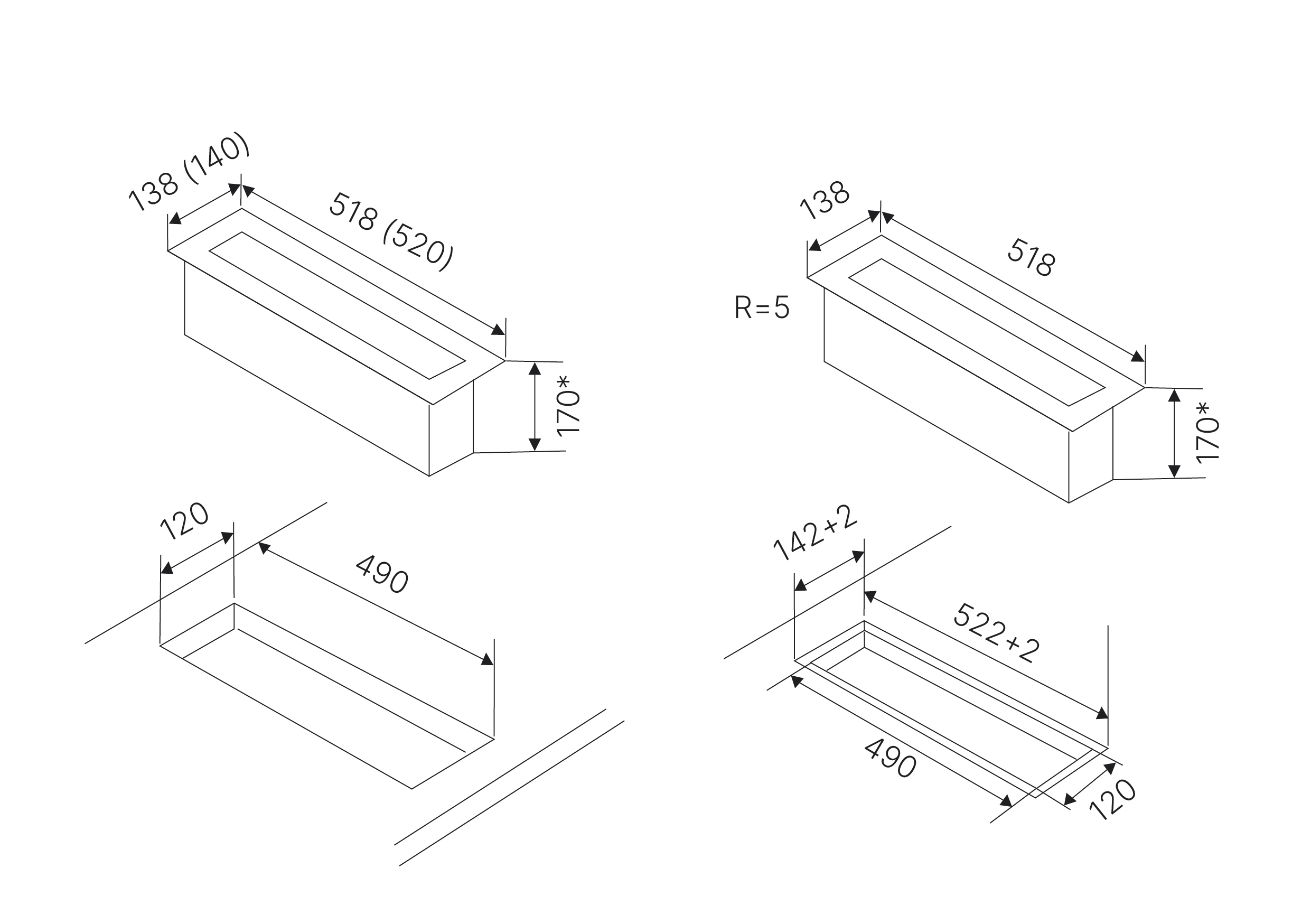

סקיצת התקנה (VKM1820-0SR-complete-drawing.jpg, 522 Kb) [Download]
