90 cm Ceiling-Mounted Range Hood, Series 8, Model DDL9830.0W, KUPPERSBUSCH

60 cm, 22 cm, 90 cm, kuppersbusch, זכוכית לבנה, קופרבוש
DDL9830.0W
(deepness (centimeter:
60 cm
(height (centimeter:
22 cm
(width (centimeter:
90 cm
Brand:
kuppersbusch
Color:
זכוכית לבנה
All features
  • 6 power levels, including a high-power setting
  • Airflow rate (out): Standard power setting—maximum 634 m³/h; Intensive power setting—808 m³/h
  • Electronic control with touch sensors
  • LED display of power levels
  • Digital display
  • Extendable, motor-driven range hood
Full description
Contact us for a price
  • 6 power levels, including a high-power setting
  • Airflow rate (out): Standard power setting—maximum 634 m³/h; Intensive power setting—808 m³/h
  • Electronic control with touch sensors
  • LED display of power levels
  • Digital display
  • Extendable, motor-driven range hood

Efficient Suction

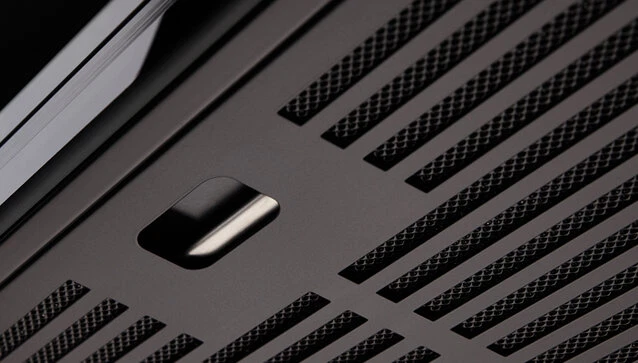

Our range hoods with edge suction conceal the grease filters behind a removable stainless steel cover. The suction area is intentionally reduced, causing air to be drawn in at a significantly faster rate than in a standard range hood. The result is increased suction efficiency.




Stunning, Powerful, and Efficient

Energy consumption is exceptionally low. Some models feature energy efficiency ratings as high as A++. They also boast excellent performance in terms of fans, grease filters, and lighting efficiency.





DDL9830.0W

90 cm high range hood with remote control and 6 power levels

Accessories:
• Ceramic filter - Part No. 1015 ZD
• Recirculation box – Part No. 1016 ZD
Includes ceramic filter



Features

  • 6 power levels, including a high-power setting
  • Exhaust rate (out): Standard power setting—maximum 634 m³/h; Intensive power setting—808 m³/h
  • Electronic controls with touch sensors
  • LED display of power levels
  • Digital display
  • Extendable, motor-driven range hood
  • Edge-suction technology with black glass panel
  • Removable glass panel
  • Automatic delay shut-off
  • Filter saturation indicator

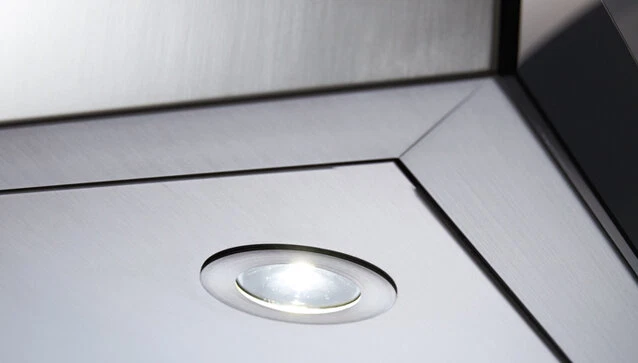

  • Dimmable LED lighting
  • Metal grease filters
  • Recirculation mode available (see accessories)

Dimensions

Internal Dimensions

Overall Dimensions

  • Product height (mm): 214
  • Product width (mm): 900
  • Product depth (mm): 600
  • Product weight (kg): 25

Electrical Connection

Electrical Connection

  • Frequency (Hz): 50.60
  • Voltage (V): 220–240
  • Cable Length (cm): 150
  • Plug: Yes
  • Internal Lighting Power Consumption (W): 2.2




(deepness (centimeter:
60 cm
(height (centimeter:
22 cm
(width (centimeter:
90 cm
Brand:
kuppersbusch
Color:
זכוכית לבנה
Electrical Appliance Manufacturer:
קופרבוש

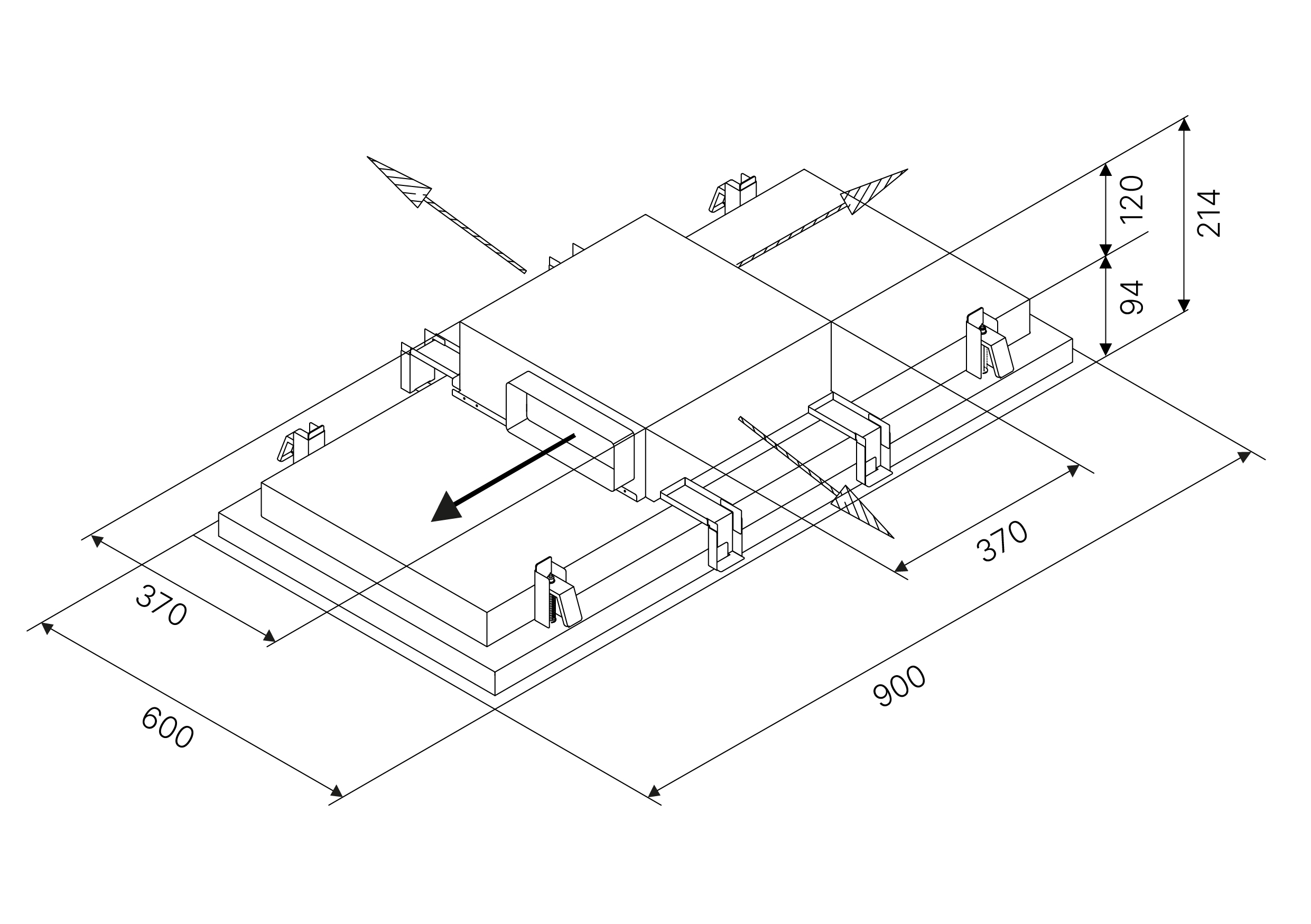

סקיצת התקנה (DDL9830-0W-complete-drawing.jpg, 599 Kb) [Download]
