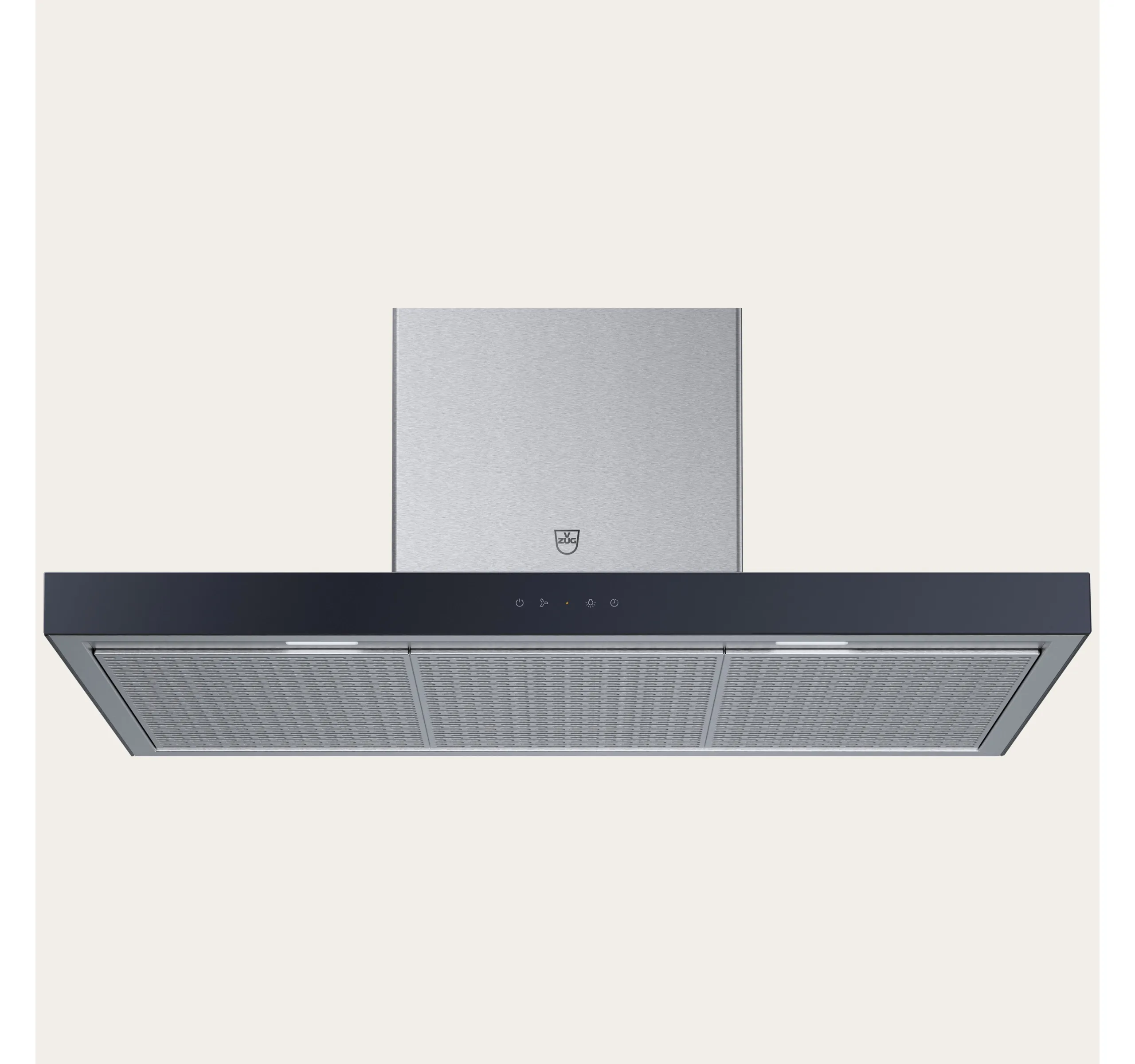

90-cm Wall-Mounted Range Hood, Model AW6T9QTLG, by V-ZUG

55 cm, 90 cm, V-ZUG, זכוכית מראה, V-ZUG
AW6T9QTLG / AW6T9QTPLG
(deepness (centimeter:
55 cm
(width (centimeter:
90 cm
Brand:
V-ZUG
Color:
זכוכית מראה
Electrical Appliance Manufacturer:
V-ZUG
All features
This wall-mounted range hood combines impressive extraction performance and energy efficiency with a minimalist, elegant design featuring a black mirror-finish glass surface. For a classic yet modern look.

Full description
Contact us for a price
This wall-mounted range hood combines impressive extraction performance and energy efficiency with a minimalist, elegant design featuring a black mirror-finish glass surface. For a classic yet modern look.




Smart Automatic Air Extraction

If both the range hood and the cooktop feature OptiLink technology, you can connect them. This allows the range hood to automatically adjust its extraction power to match the cooktop’s cooking levels, ensuring an exceptionally comfortable cooking experience.



Easy Cleaning for Consistent Performance

The filters are easy to remove and dishwasher-safe, ensuring effective and efficient performance throughout the product’s entire lifespan. Designed with everyday practicality in mind.





A Design Highlight in the Kitchen

The elegant panels feature a mirror-finish glass surface that reflects the sleek aesthetics of V-ZUG’s Excellence Line. With their subtle silhouette, they pair well with a variety of cooktops and add visual interest to airy, open kitchen spaces.



Maximum exhaust hood height

660 mm

Exhaust height at appliance level

460 mm

Recirculated air unit height

570 mm

Maximum unit height for air recirculation

770 mm

Front height

55 mm

Unit width

898 mm

Device depth

550 mm

Maximum appliance depth

550 mm

Declared weight of goods

25.5 kg



Energy

Standby Power Consumption

0.49 W

Power consumption outside standby mode

0 W

Light source must be replaced by a professional

Yes

Energy Efficiency Class

A+

Annual Energy Consumption

28.2 kWh

Lighting Efficiency Rating

A

Dynamic fluid efficiency

36.3

Fluid dynamic efficiency ratio

A

Rated Voltage (1)

220–240 V~

Nominal power (number x W)

2 x 2 W

Frequency (1)

50–60 Hz

Rated power (1)

0.134 kW

Fencing value (1)

10 A

Plug type

SII32

Connection cable

1.5 m



Additional data

Light color in Kelvin

Additional Information

2700 K

Bright color at the upper end of the Kelvin scale

4000 K

Exhaust Air Connection Diameter

150 mm

Luminous efficacy

28

Illuminance on the cooking surface

113 lux

Grease separation class

B

Intensive exhaust airflow

675 m³/h

Maximum exhaust air flow rate

452 m³/h

Minimum exhaust air flow rate

247 m³/h

Airflow rate in intensive air recirculation mode

570 m³/h

Maximum air output in air recirculation mode

389 m³/h

Airflow rate at minimum recirculation mode

210 m³/h

Intensive airflow

63 dB(A)

Max. exhaust air sound level

52 dB(A)

Minimum exhaust air sound power level

38 dB(A)

Sound Level in Intensive Air Recirculation Mode

68 dB(A)

Sound level in recirculation mode, maximum

56 dB(A)

Sound level in minimum recirculation mode

41 dB(A)

Connection to supply/exhaust air duct

Yes

Connection to window contact switch

No

Connection to comfort ventilation

Additional Information

No

Number of motors

1

Rated motor power

130 W



(deepness (centimeter:
55 cm
(width (centimeter:
90 cm
Brand:
V-ZUG
Color:
זכוכית מראה
Electrical Appliance Manufacturer:
V-ZUG

קובץ התקנה (1055687-R02-1051253-00-AB.pdf, 990 Kb) [Download]
