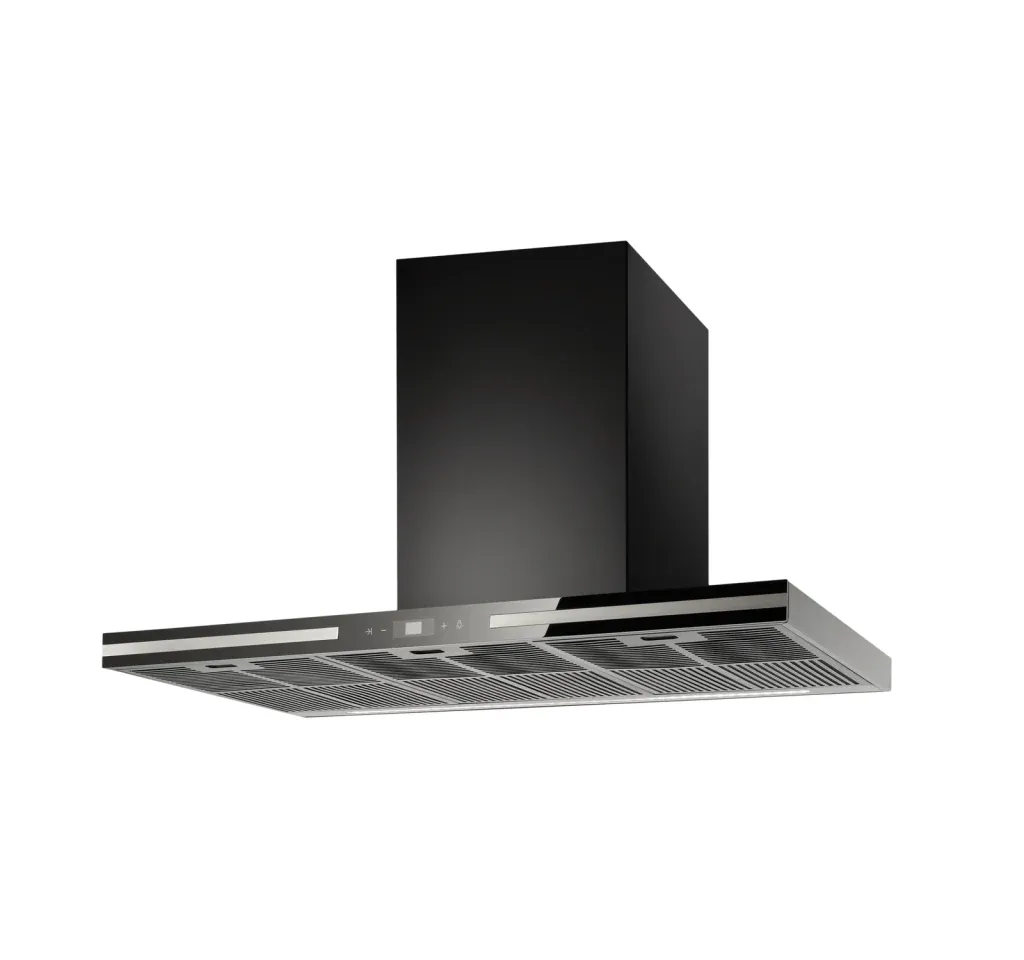

90-cm Wall-Mounted Range Hood, Series 5, Model DW9500.0, Kuppersbusch

48 cm, 67 cm, 90 cm, kuppersbusch, Black, קופרבוש
DW9500.0
(deepness (centimeter:
48 cm
(height (centimeter:
67 cm
(width (centimeter:
90 cm
Brand:
kuppersbusch
Color:
Black
All features
  • 4 power settings, including a high-power setting
  • Airflow rate (out): Standard power setting—maximum 650 m³/h; Intensive power setting—764 m³/h

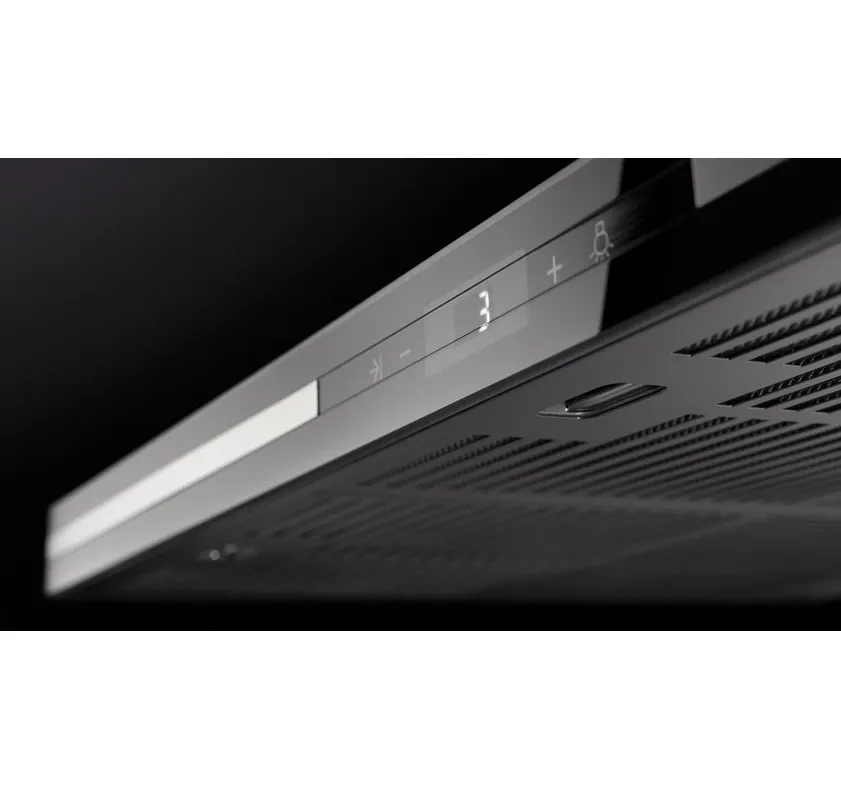

  • Electronic control with touch sensors
  • Filter saturation indicator

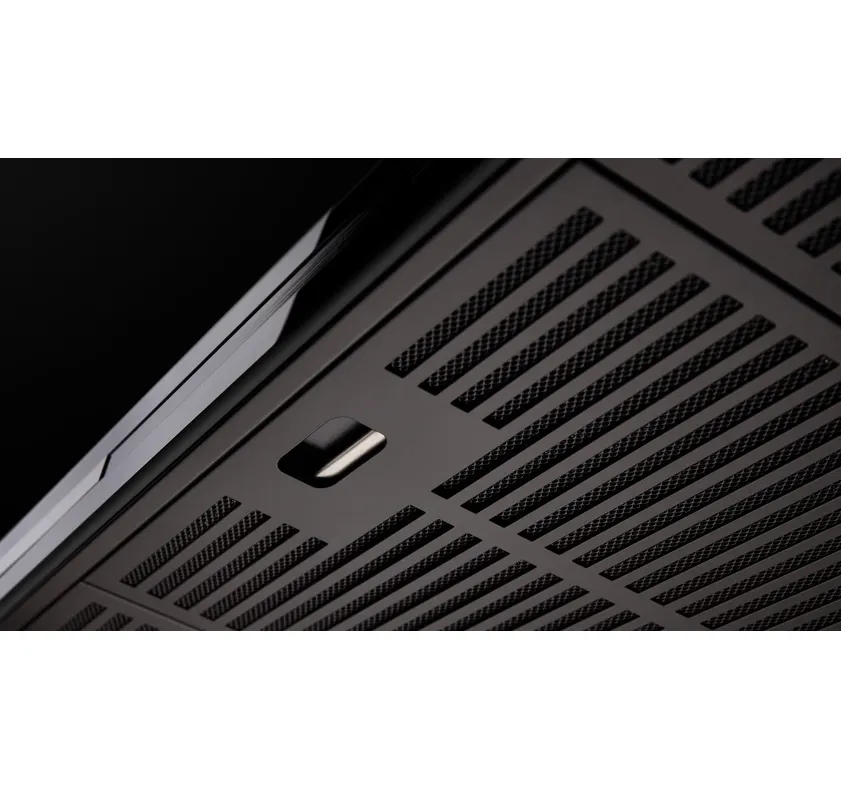

  • Metal grease filters
  • Height adjustment via a telescopic chimney
Full description
Contact us for a price
  • 4 power settings, including a high-power setting
  • Airflow rate (out): Standard power setting—maximum 650 m³/h; Intensive power setting—764 m³/h
  • Electronic control with touch sensors
  • Filter saturation indicator
  • Metal grease filters
  • Height adjustment via a telescopic chimney




A Unique Concept from Küppersbusch

Küppersbusch’s personalized concept allows you to tailor our appliances to your individual preferences. For the design elements, you can choose from eight different colors and materials: stainless steel, black chrome, silver chrome, gold, black velvet, and copper. Maximum variety, personal style.



Breathtaking, powerful, and efficient

Energy consumption is exceptionally low. Some models feature energy efficiency ratings as high as A++. They also boast excellent performance in terms of fans, grease filters, and lighting efficiency.



DW9500.0S

90 cm wall-mounted range hood with 4 speed settings

Accessories:
Charcoal filter - Part No. 1001 ZD
Plasma filter - Part No. 8000 ZD
Design kits (2 parts required:)
Stainless Steel Trim Kit – Part No. 9011 DK
Black Chrome Trim Kit – Part No. 9012 DK
Silver Chrome Trim Kit – Part No. 9013 DK
Gold Trim Kit – Part No. 9014 DK
Copper Trim Kit – Part No. 9017 DK



Features

  • 4 power levels, including a high-power setting
  • Airflow Rate (Out): Standard Power Setting—Maximum 650 m³/h; Intensive Power Setting—764 m³/h
  • Electronic control with touch sensors
  • Filter saturation indicator
  • Metal grease filters
  • Height adjustment via telescopic chimney
  • Recirculation mode available (see accessories)
  • Exhaust air connection—150 mm Motor mounting in various orientations
  • LED light color—4,000–4,500 Kelvin

Dimensions

Internal dimensions

Overall dimensions

  • Product height (mm): 670–1,000
  • Product width (mm): 900
  • Product depth (mm): 480

Electrical Connection

Electrical Connection

  • Frequency (Hz): 50
  • Voltage (V): 220–240
  • Cable length (cm): 100
  • Plug: Yes
  • Internal Lighting Power Consumption (W): 7
(deepness (centimeter:
48 cm
(height (centimeter:
67 cm
(width (centimeter:
90 cm
Brand:
kuppersbusch
Color:
Black
Electrical Appliance Manufacturer:
קופרבוש

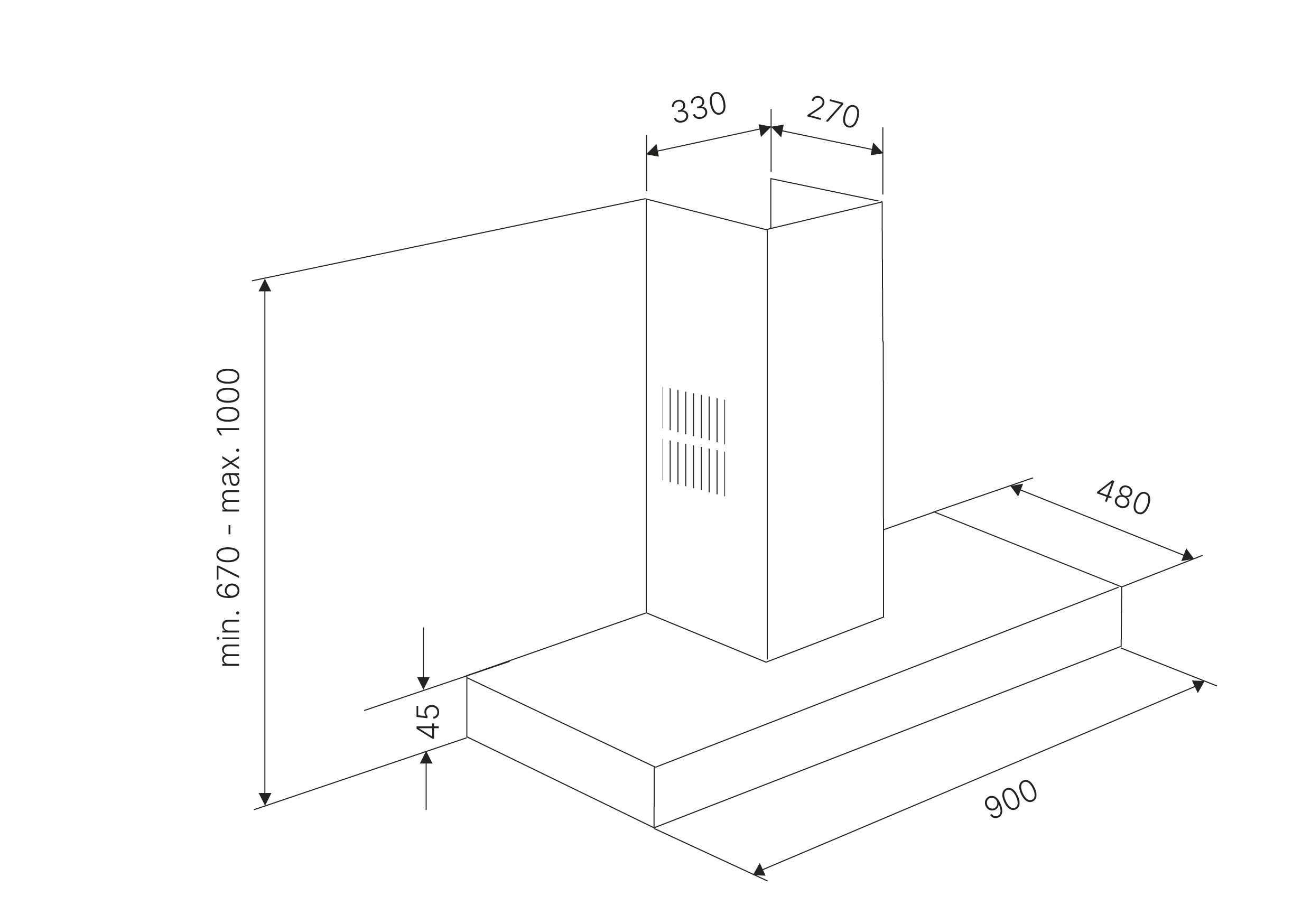

סקיצת התקנה (DW9500-0S-complete-drawing.jpg, 319 Kb) [Download]
