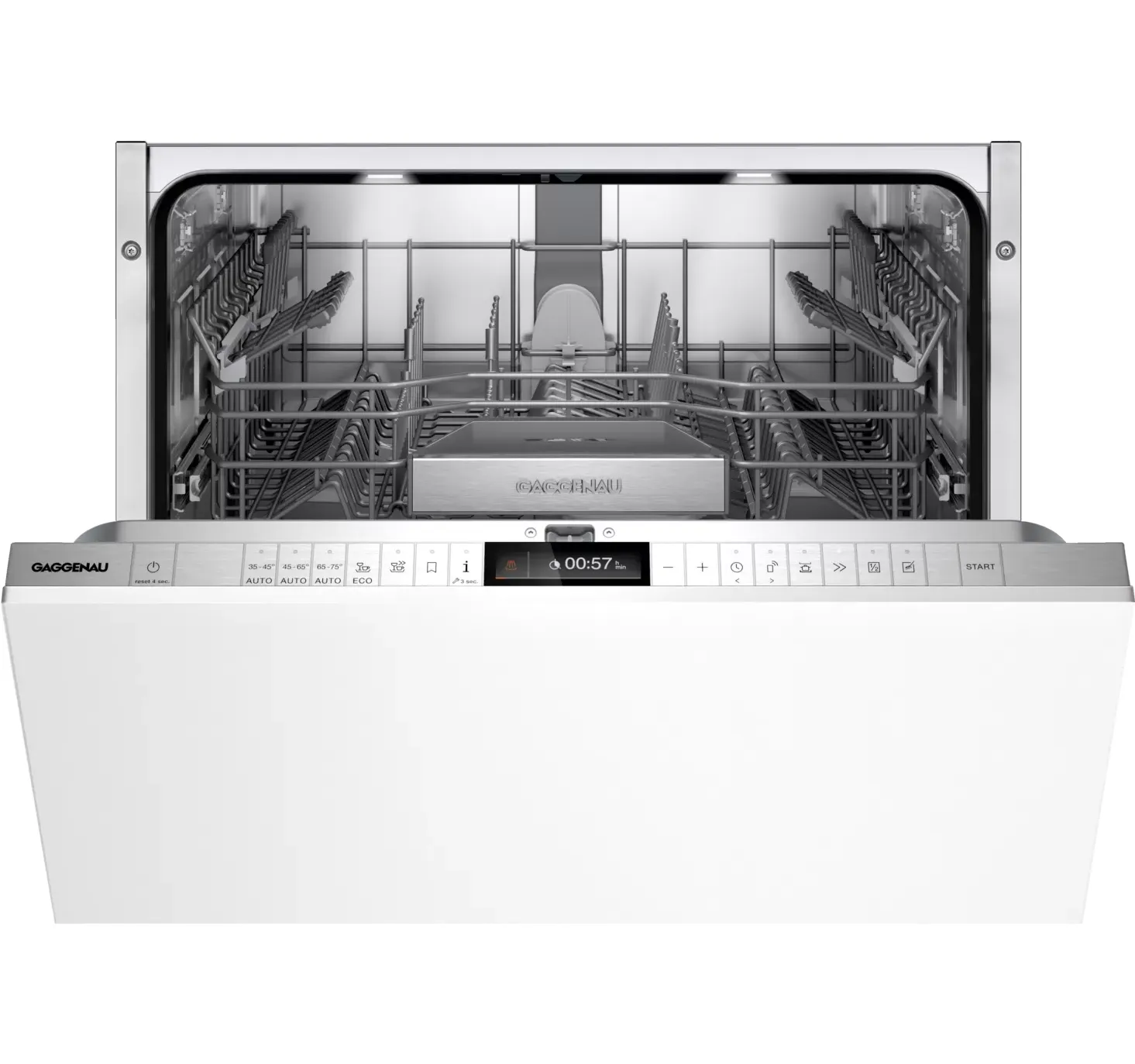

Built-in dishwasher, model DF270101F, Gaggenau 200 Series

Built-in dishwasher
Full-size, 6 programs, 60 cm
Width, push-to-open,
telescopic rails,
zeolite drying, can be
installed with a 5 cm plinth

Controls

TFT display showing remaining time or end of cycle, salt and rinse aid refill, water flow.

Touch-button operation.

Flexible cycle time reduction, even during an active cycle.

Customization function to save individual program combinations.

Optional door-opening drying assist at the end of the program.

Information display with usage indicators.

Delay start up to 24 hours.

Visual and audible end-of-cycle indicator.

Cross-shaped indicator light.

Technical Features

Bright interior lighting.

Glass protection with zeolite.

Aqua sensor.

Load sensor.

Detergent detection.

Regeneration electronics.

Heat exchanger.

Continuous-flow heater.

Triple filtration system.

Soft lock.

Aqua Stop.

Select digital services (Home Connect)

Program Assistant.

Temporary noise reduction.

Downloadable programs.

Wireless integration of your home network with Home Connect digital services via Wi-Fi.

Use of Home Connect features depends on Home Connect services, which are not available in every country. For more information, visit: home-connect.com.

Programs

6 programs :
, Auto35°C–45°C, Auto 45°C–65°C , Auto 65°C–75°C, Eco 50°C, Quick Wash at 45°C (35 minutes). Customization function (default setting: Pre-wash).

3 options :
, Intensive, Power, Half Load.

Machine Care.

Interior

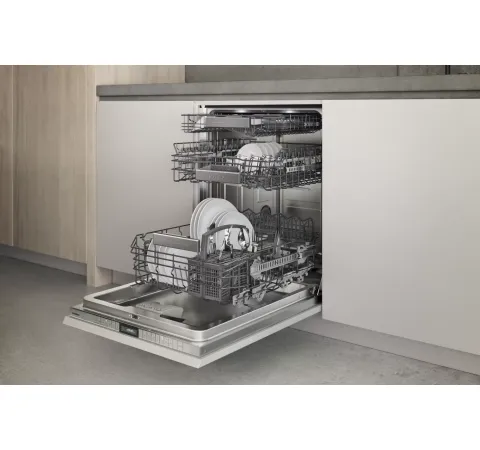

Flexible basket system with smooth-running rails at all levels.

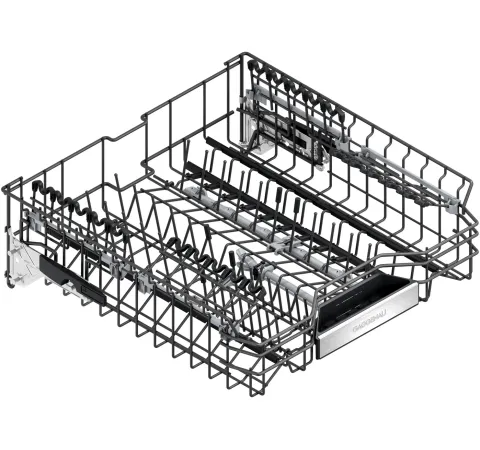

Upper basket:

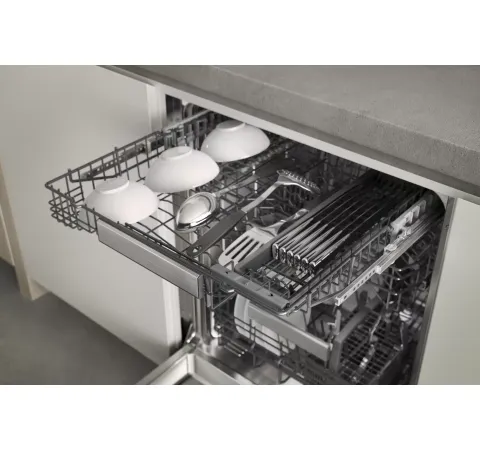

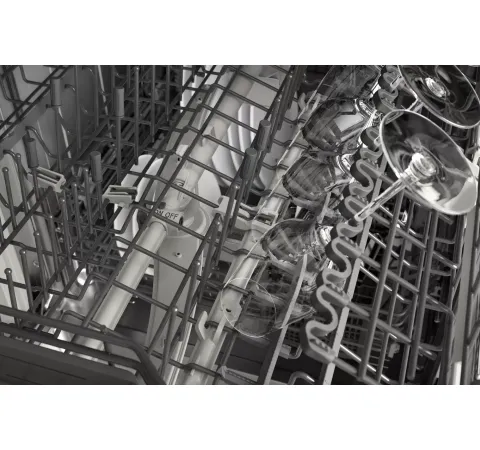

Extension above. Optional additional cleaning area by activating extra spray nozzles. Rackmatic with 3 levels, height-adjustable up to 5 cm. 6 folding prongs. 4 folding racks for optimal glass protection.

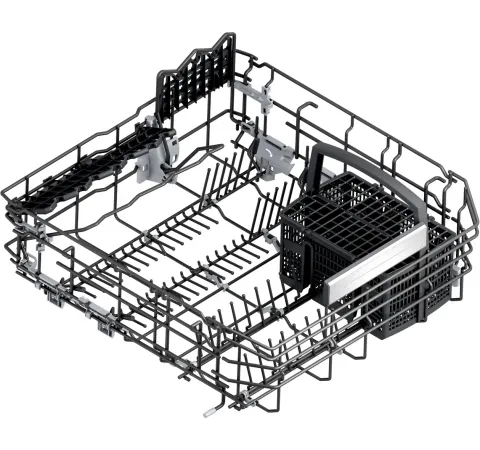

Lower basket:
8 folding prongs . 2 folding racks for optimal glass protection. Divisible glass support.

Cutlery basket.

Maximum dish sizes (upper/lower basket):
29/28, 26.5/30.5, or 24/34 cm, respectively.

Capacity: 12 place settings.

Maximum glass capacity: 23 wine glasses.

Energy consumption data

Energy efficiency class B on a scale from A to G.

From 9.5 liters of water.

From 0.626 kilowatts.

Noise level: 43 dB (re 1 pW).

Design Notes

Height-adjustable legs.

Appliance base recess: 100 mm (see diagram).

Rear legs are adjustable from the front.

Door weight up to 11 kg.

The door panel dimensions depend on the height of the kitchen cabinet base.

Installation and use with a furniture handle are also possible. The push-to-open function remains active.

Connections

Total connected load: 2.0 kW – 2.4 kW.

A connection cable is included.

Water connection with a 3/4-inch screw connection.

Can be connected to hot or cold water.

Standby/mains power consumption: 2.0 W.

Automatic standby/mains time: 2 minutes.

Left mode duration: 0 minutes.

Please refer to the user manual for instructions on how to turn off the Wi-Fi module.
