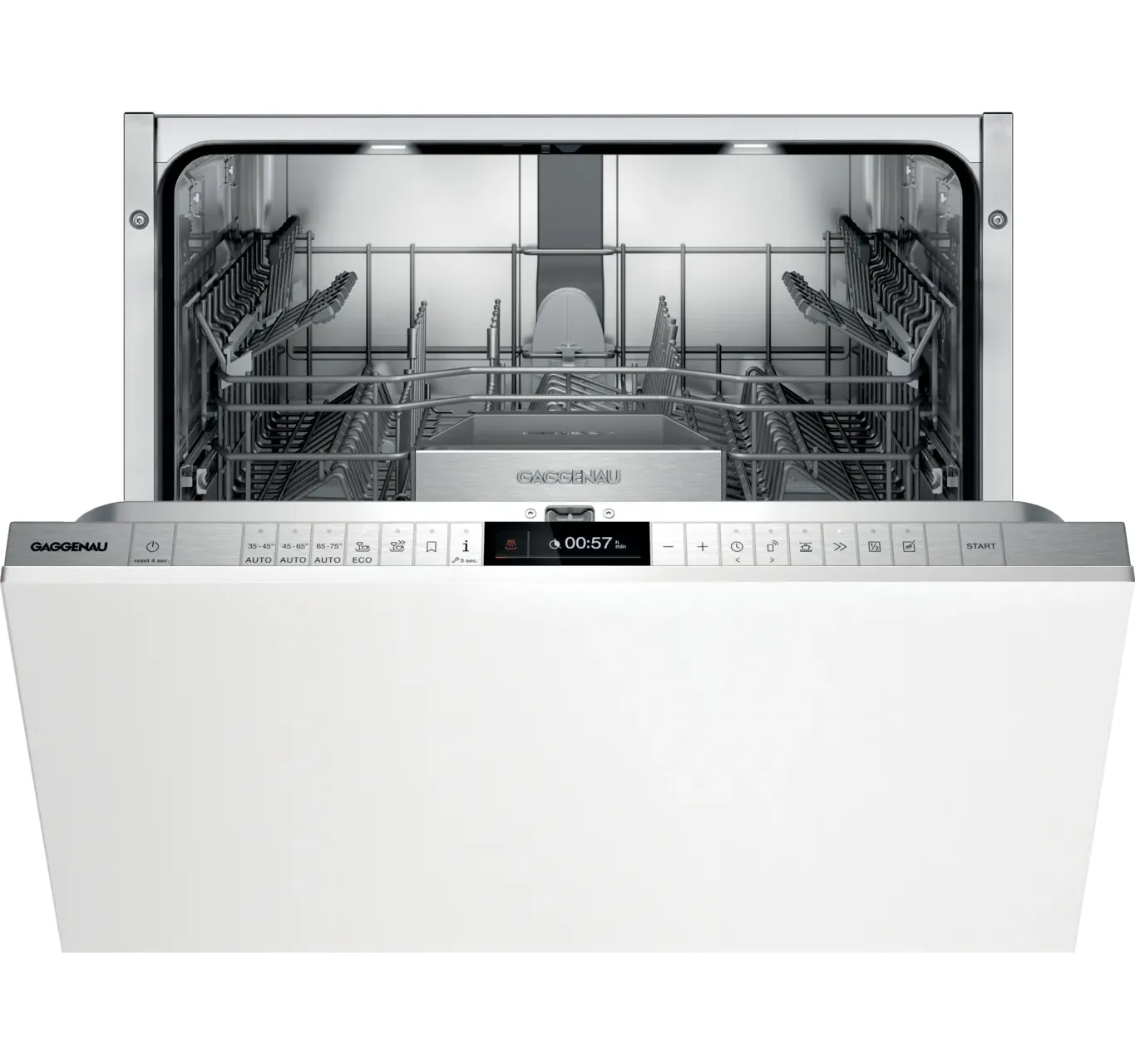

Built-in Dishwasher, Model DF271101, 200 Series, Gaggenau

Built-in Dishwasher
Full-size, 6 programs,
60 cm wide, XXL
Push-to-open,
, drying
zeolite, time display on
floor

Care

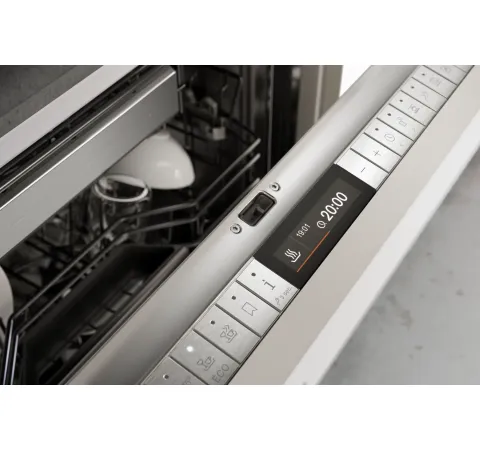

TFT display showing remaining time or completion, salt and rinse aid levels, water flow.

Touch-button operation.

Even cycle in progress.

Customization function to save individual program combinations.

Optional door-opening drying assist at the end of the program.

Information display with usage indicators.

Delay start up to 24 hours.

Visual and audible end-of-cycle indicator.

Remaining time display.

Technical Features

Bright interior lighting.

Glass protection with zeolite.

Aqua sensor.

Load sensor.

Detergent detection.

Regeneration electronics.

Heat exchanger.

Continuous-flow heater.

Triple filtration system.

Soft lock.

Aqua Stop.

Select digital services (Home Connect)

Program Assistant.

Temporary noise reduction.

Downloadable Programs.

Home network integration for digital services (Home Connect) via Wi-Fi.

Home Connect functionality depends on Home Connect, a service available in each country. For more information, visit: home-connect.com.

Programs

6 programs :
, 35°C–45°C; Auto , 45°C–65°C; Auto , 65°C–75°C; Eco , 50°C; Quick Wash at 45°C (35 minutes). Customization function (default setting: Pre-wash).

3 options :
Intensive. Power. Half Load.

Machine Care.

Interior

Flexible basket system with smooth-running rails at all levels.

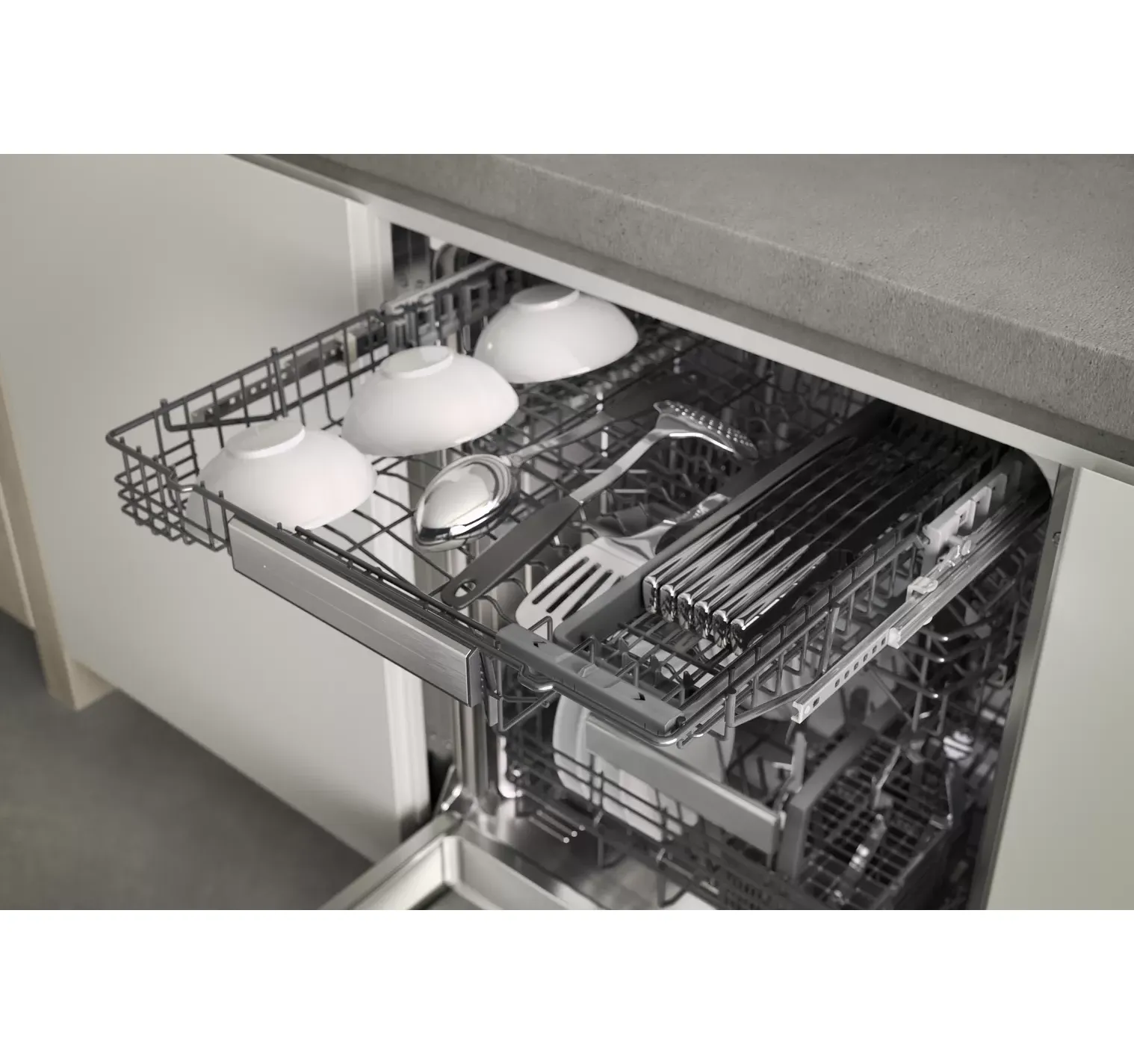

Upper basket:
Extension above. Optional additional cleaning area by activating extra spray nozzles. Rackmatic with 3 levels, height-adjustable up to 5 cm. 6 folding prongs. 4 folding racks for optimal glass protection.

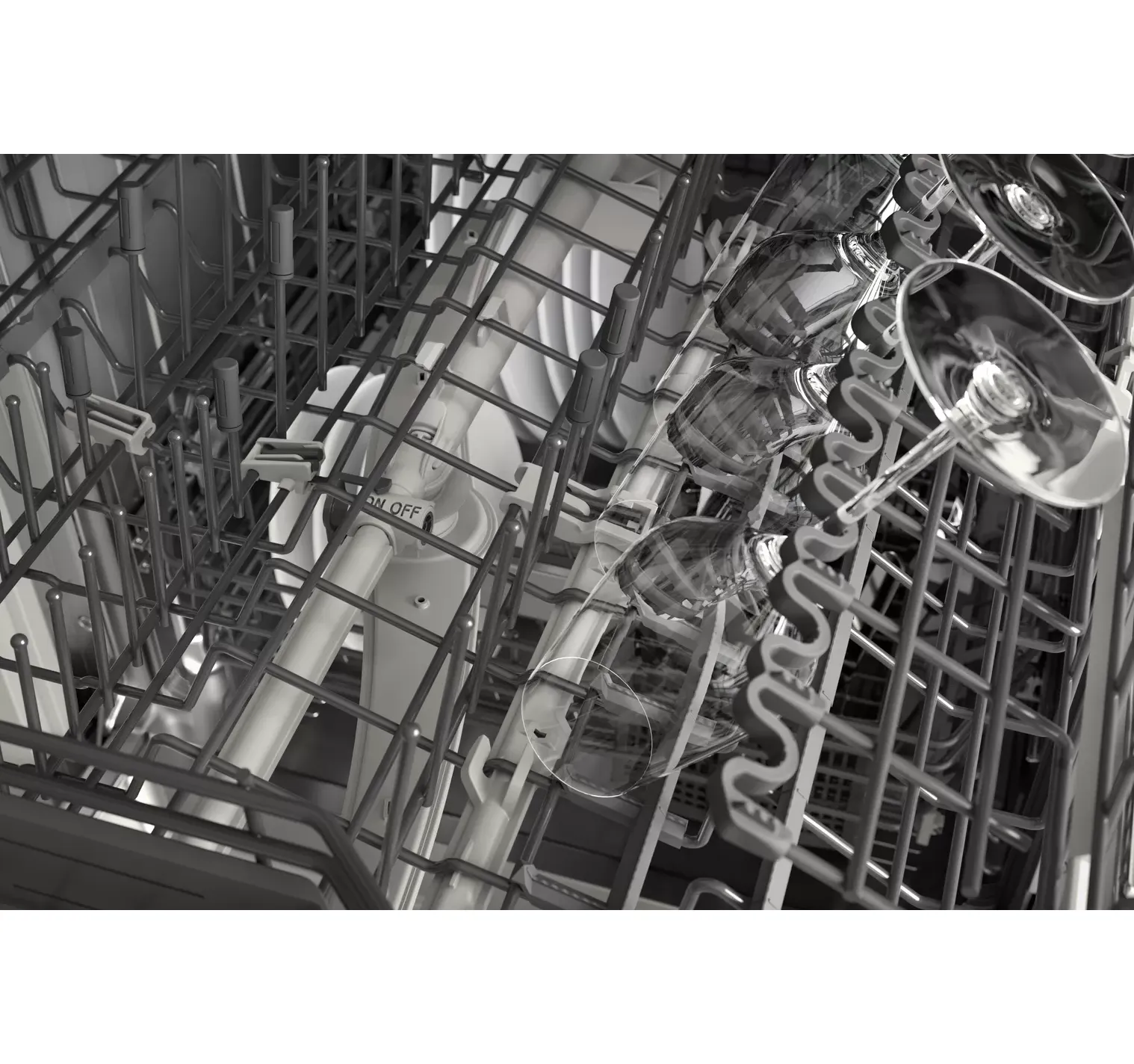

Lower basket:
8 folding prongs . 2 folding racks for optimal glass protection. Divisible glass support.

Cutlery basket.

Maximum dish sizes (upper/lower basket):
29/28, 26.5/30.5, or 24/34 cm, respectively.

Capacity: 12 place settings.

Maximum glass capacity: 23 wine glasses.

Energy consumption data

Energy efficiency class B, ranging up to class G.

From 9.5 liters of water.

From 0.626 kilowatts.

Noise level: 43 dB (re 1 pW).

Design Notes

Height-adjustable legs.

Appliance base recess: 100 mm (see drawing).

To display the remaining time projection, a minimum base recess (40 mm + the thickness of the cabinet front) is required.

Reduce the maximum plinth height by 30 mm to ensure optimal visibility of the remaining time display.

Rear legs are adjustable from the front.

Door weight up to 10 kg.

The door panel dimensions depend on the base height of the kitchen cabinet.

Installation and use with a furniture handle are also possible. The push-to-open function remains active.

Connections

Total connected load: 2.0 kW – 2.4 kW.

A connection cable is included.

Water connection with a 3/4-inch screw connection.

Can be connected to hot or cold water.

Standby/mains power consumption: 2.0 W.

Automatic standby/mains time: 2 minutes.

Left mode duration: 0 minutes.

Please refer to the user manual for instructions on how to turn off the Wi-Fi module.
