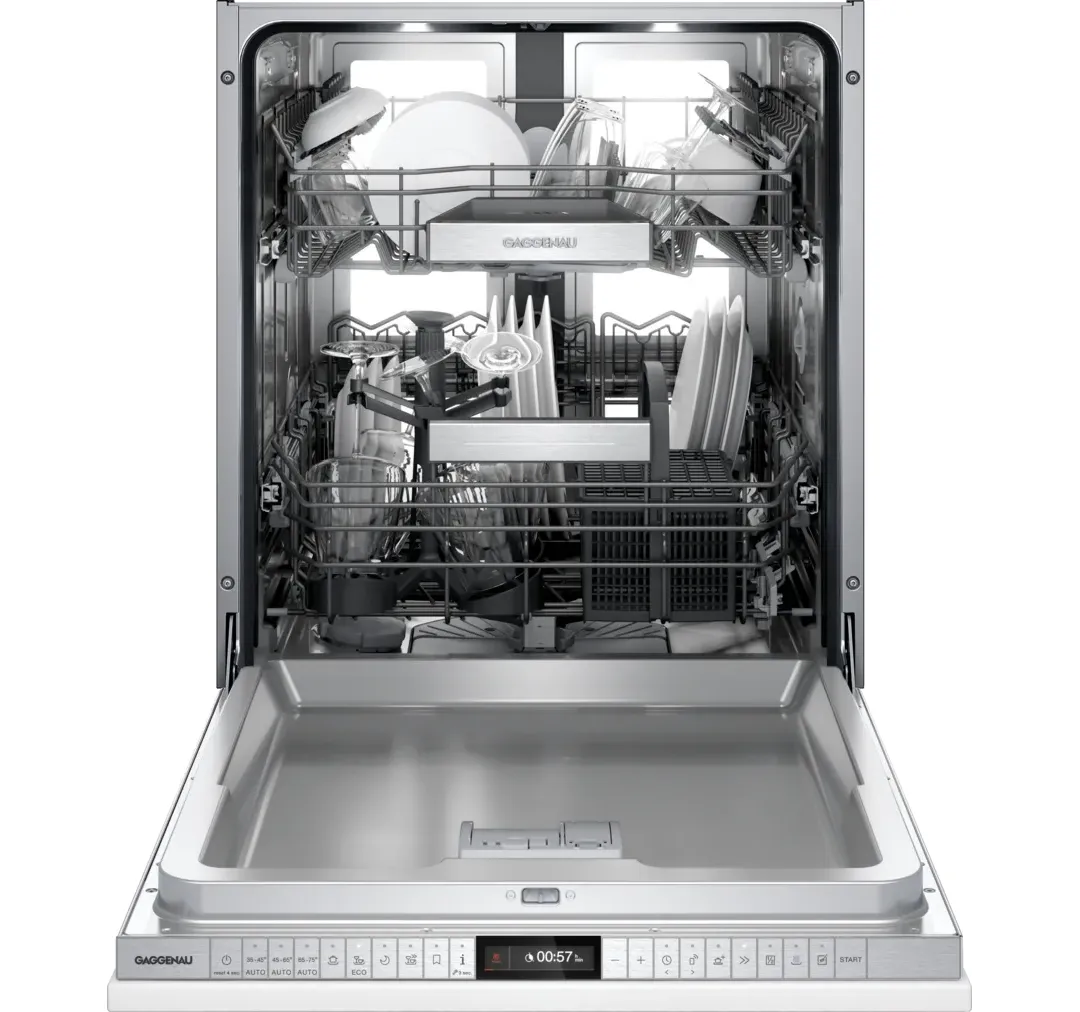

Built-in Dishwasher, Model DF480101, 400 Series, Gaggenau

Fully integrated dishwasher,
8 programs , 60 cm wide, push-to-open
push-to-open, telescopic rails,
zeolite drying, motorized bottom spray arm
that also allows adjustment of water pressure
and spray zones, automatic opening at the end
the cycle, option to upgrade programs,
time projection onto the floor

Maintenance

TFT display showing time remaining or completion, salt and rinse aid refill, and water flow.

Touch-button operation.

Flexible cycle time reduction, even during an active cycle.

Customization function to save individual program combinations.

Information display with usage indicators.

Delay start up to 24 hours.

Visual and audible program end indicator.

Remaining time display.

Technical Features

Perfectly illuminated interior.

Glass protection with zeolite.

Aqua sensor.

Load sensor.

Detergent recognition.

Regeneration electronics.

Heat exchanger.

Continuous-flow heater.

Triple filtration system.

Soft lock.

Aqua Stop.

Select digital services (Home Connect)

Smart cycle adjustment program based on user feedback.

Program Assistant.

Drying Assistant for optional door opening at the end of the cycle.

Temporary noise reduction.

Downloadable programs.

Wireless home network integration for digital services (Home Connect) via Wi-Fi.

Use of Home Connect features depends on Home Connect services, which are not available in every country. For more information, visit: home-connect.com.

Programs

8 programs :
, Auto35°C–45°C , Auto 45°C–65°C , Auto 65°C–75°C, Intensive 70°C. Eco 50°C. Night program. Quick wash at 45°C (35 minutes). Customization function (default setting: pre-rinse).

4 options :
, Intensive Plus. Power. Half Load. Delicate.

Machine Care.

Interior

Flexible basket system with smooth-running rails at all levels and padded closures for the upper and lower baskets.

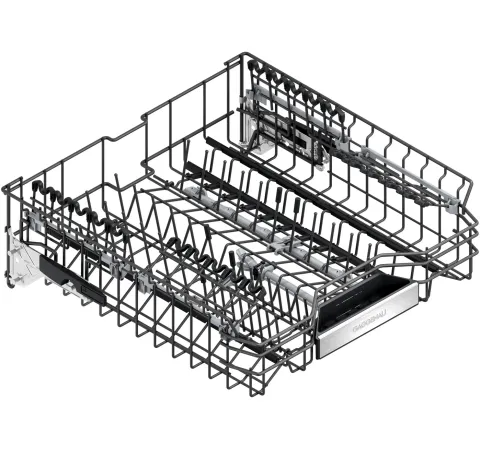

Upper basket:
Extension above. Optional additional cleaning area by activating extra spray nozzles. Rackmatic with 3 levels, height-adjustable up to 5 cm. 6 folding prongs. 4 folding racks for optimal glass protection.

Lower basket:

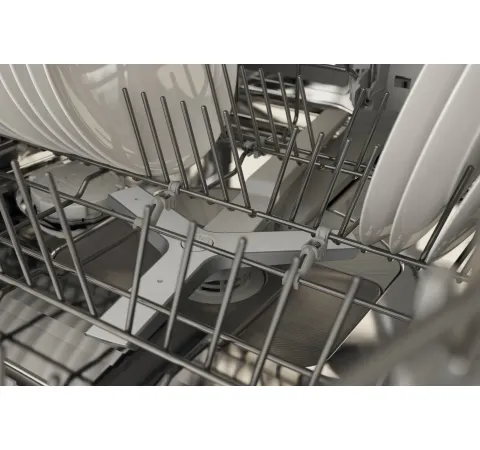

Motorized spray arm. 8 folding prongs. 2 folding racks for optimal glass protection. Divisible glass support.

Cutlery basket.

Maximum dish sizes (upper/lower basket):
27/25, 24.5/27.5, or 22/31 cm, respectively.

Capacity: 12 place settings.

Maximum glass capacity: 23 wine glasses.

Energy Consumption Data

Energy efficiency class B on a scale from A to G.

From 9.5 liters of water.

From 0.626 kilowatts.

Noise level: 43 dB (re 1 pW).

Design Notes

Height-adjustable legs.

Appliance base recess: 100 mm (see drawing).

To display the remaining time, a minimum base projection of 40 mm plus the thickness of the cabinet front is required.

Reduce the maximum plinth height by 30 mm to ensure optimal visibility of the remaining time display.

Rear legs are adjustable from the front.

Door weight up to 8.5 kg.

The door panel dimensions depend on the base height of the kitchen cabinet.

Installation and use with a furniture handle are also possible. The push-to-open function remains active.

Connections

Total connected load: 2000–2400 W.

A connection cable is included.

Water connection with a 3/4-inch screw connection.

Can be connected to hot or cold water.

Standby/mains power consumption: 2.0 W.

Automatic standby/mains time: 2 minutes.

Please refer to the user manual for instructions on how to turn off the Wi-Fi module.
