Domino SmartLine Range Hood, Model CSDA 7001 FL, by Miele

Domino SmartLine CSDA 7001 FL

SmartLine under-cabinet range hood for extracting cooking fumes or filtering and recirculating air

• Frameless, recessed under-cabinet range hood

• Reversible air duct type

• Quick selection via continuous digital control— Smart Select

• Elegant design—for recessed or countertop installation

• Integrates perfectly with all SmartLine components

• Efficient filtration—10-layer stainless steel grease filter

• Energy-efficient and quiet— powerful ECO motor

Part No.:

54315

Type: Miele Exclusive Line

Color:Black

Details

Product Features

Type of Structure

• Under-cabinet range hood

Design

• Recessed
• Frameless – for installation above the countertop

Operating Modes

• Airflow Type: Reversible

User Convenience

• Operation via Smart Select sensor control
• Digital power level display
• Yellow display
• Operating time: 5 minutes

Efficiency and Sustainability

• Annual energy consumption in kWh/year: 25.3
• ECO motor

Ease of Cleaning

• Easy-to-clean ceramic glass
• Easy-to-clean cover – CleanCover

Filtration system

• 1 dishwasher-safe stainless steel greasefilter

Technical Specifications

• Weight: 11 kg
• Total power consumption: 0.170 kW
• Voltage:230 V
• Fuse:10 A
• Number of phases: 1
• Power cord length: 2 meters

Installation Notes

• Base fan with ventilation connection
• Side and rear exhaust connections
• Exhaust pipe connector dimensions in mm (width): 222
• Exhaust pipe connector dimensions in mm (depth): 89

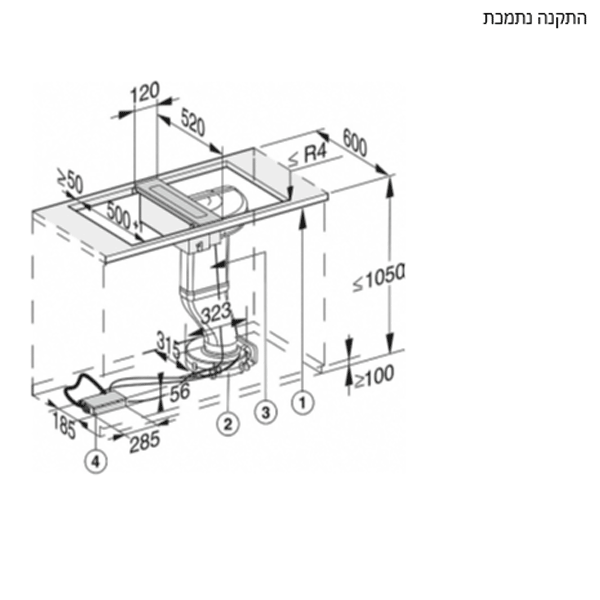

Dimensions

• Dimensions in mm (width) 120
• Dimensions in mm (height) 168
• Dimensions in mm (depth) 520
• Total enclosure height, including junction box, in mm: 168
• Cutout dimensions in mm (width) for surface-mounted installation 100
• Cutout dimensions in mm (depth) for surface-mounted installation: 500
• Internal cutout dimensions in mm (width) for surface-mounted installation: 100
• Internal cutout dimensions in mm (depth) for recessed installation: 500
• External cutout dimensions in mm (width) for recessed installation: 124
• External cutout dimensions in mm (depth) for recessed installation 524

Safety

• Automatic Safety Shut-off
• Flame Guard

Accessories

• Power cord with plug
• Ventilation Duct System for the Base Fan
