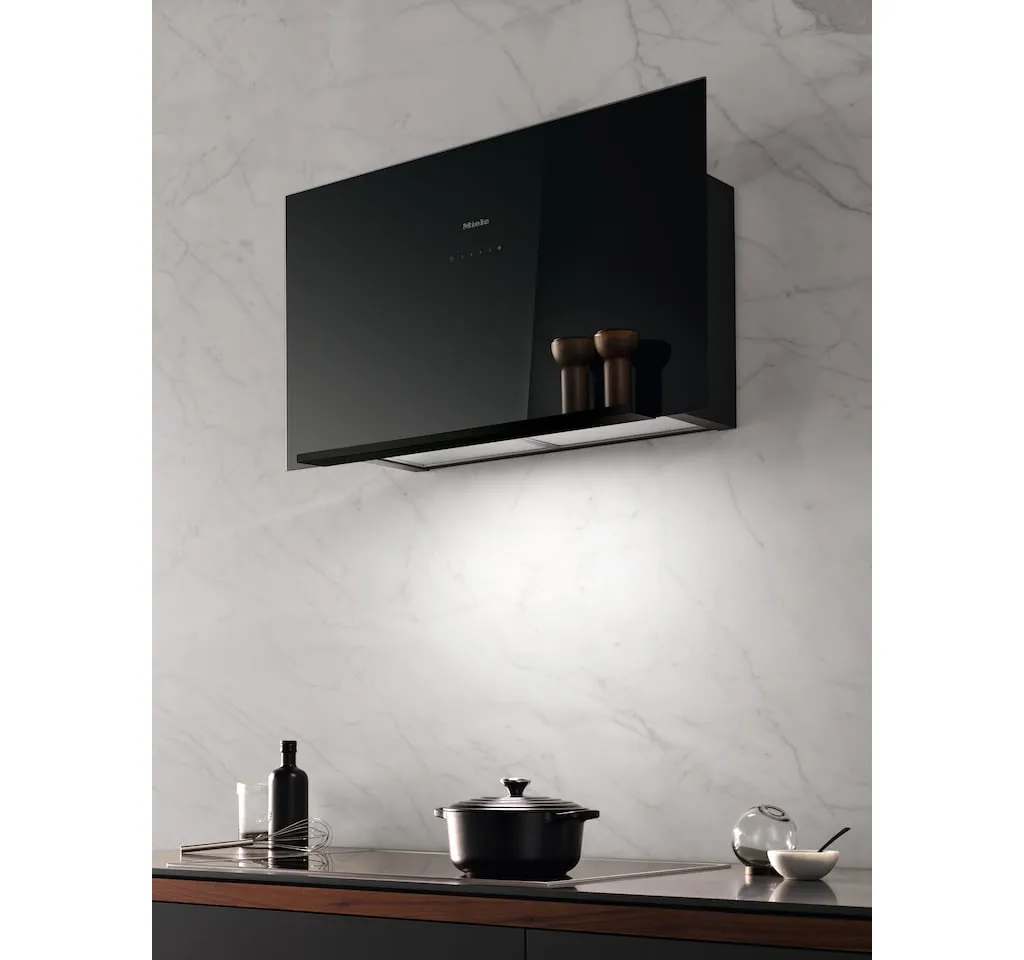

Miele DA 9092 W Wall-Mounted Range Hood

DA 9092 W Wall-Mounted Range Hood

Construction Type
Wall-mounted range hood

Operating Modes
Air duct type
Can be retrofitted
Activated carbon filter (sold separately)
DKF 29

Design
Color
Obsidian Black

User Convenience
Electronic controls
Touch Controls
Controls
Touch Controls on Glass
Power Levels (number excluding booster level)
3
Amplification Levels
1
Silence Package
Easy-to-clean interior canopy – CleanCover

Efficiency
Energy Efficiency Class (A+++ to D)
B
Annual Energy Consumption in kWh/year
67.7
Dynamic Liquid Efficiency Class
B
Lighting efficiency rating
A
Grease filtration efficiency rating
B

Cleaning and Maintenance
Easy-to-clean hood interior – CleanCover

Filtration system
Number of dishwasher-safe stainless steel grease filters (10 layers)
2

Lighting
Number x Width
1 x 3.2 watts
Light intensity in Lx
300 lux
Color temperature in K
3,500 Kelvin

Fan
Dual-action blower

Exhaust Air
Airflow at Level 1 (m³/h) per EN 61591
205
Airflow, Level 2 (m³/h) per EN 61591
310
Airflow, Level 3 (m³/h) per EN 61591
415
Airflow, Booster Level 1 (m³/h) according to EN 61591
670
Sound power level 1 (dB(A) re 1 pW) according to EN 60704-3
39
Sound power level 2 (dB(A) re 1 pW) according to EN 60704-3
45
Sound power level 3 (dB( A ) re 1 pW) per EN 60704-3
50
Sound power at booster level 1 (dB(A) re 1 pW) in accordance with EN 60704-3
62
Sound pressure level 1 (dB( A ) re 20 µPa) according to EN 60704-2-13
25
Sound pressure level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
31
Sound pressure level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
36
Sound pressure at booster level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
48

Airflow
Airflow at Level 1 (m³/h) per EN 61591
190
Airflow at Level 2 (m³/h) per EN 61591
290
Airflow at Level 3 (m³/h) per EN 61591
385
Airflow with Level 1 Booster (m³/h) according to EN 61591
605
Sound power level 1 (dB(A) re 1 pW) according to EN 60704-3
44
Sound power level 2 (dB(A) re 1 pW) according to EN 60704-3
51
Sound power level 3 (dB( A ) re 1 pW) according to EN 60704-3
58
Sound power at booster level 1 (dB(A) re 1 pW) according to EN 60704-3
69
Sound pressure level 1 (dB( A ) re 20 µPa) according to EN 60704-2-13
30
Sound pressure level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
37
Sound pressure level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
44
Sound pressure at booster level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
55

Safety
Safety Shutdown
Single-layer safety glass (ESG)

Technical Specifications
Canopy dimensions (width x height x depth ) in mm
880 x 500 x 260
Total height for ventilation and external openings (mm)
500
Total height for range hoods in exhaust and external modes in millimeters
500
Total height for recirculation in inches (mm)
500
Total height for range hoods in recirculation mode in millimeters
500
Canopy width (inches) (mm)
880
Canopy height in inches (mm)
500
Hood canopy depth in inches (mm)
260
Minimum height above electric cooktop in mm
450
Minimum safety distance above gas cooktop (maximum 12.6 kW total power, burner ≤ 4.5 kW) in mm
650
Net weight in kg
21.5
Power cord length in meters
1.5
Standard plug installed
Total Rated Load in kilowatts
0.203
Voltage in V
230
Fuse Rating in A
10
Frequency in hertz
50
Number of Phases
1

Installation Notes
Suction pipe connection at the top
Suction pipe connection diameter in mm
150

Included accessories
Non-return valve

EAN

EAN
4002516798620
