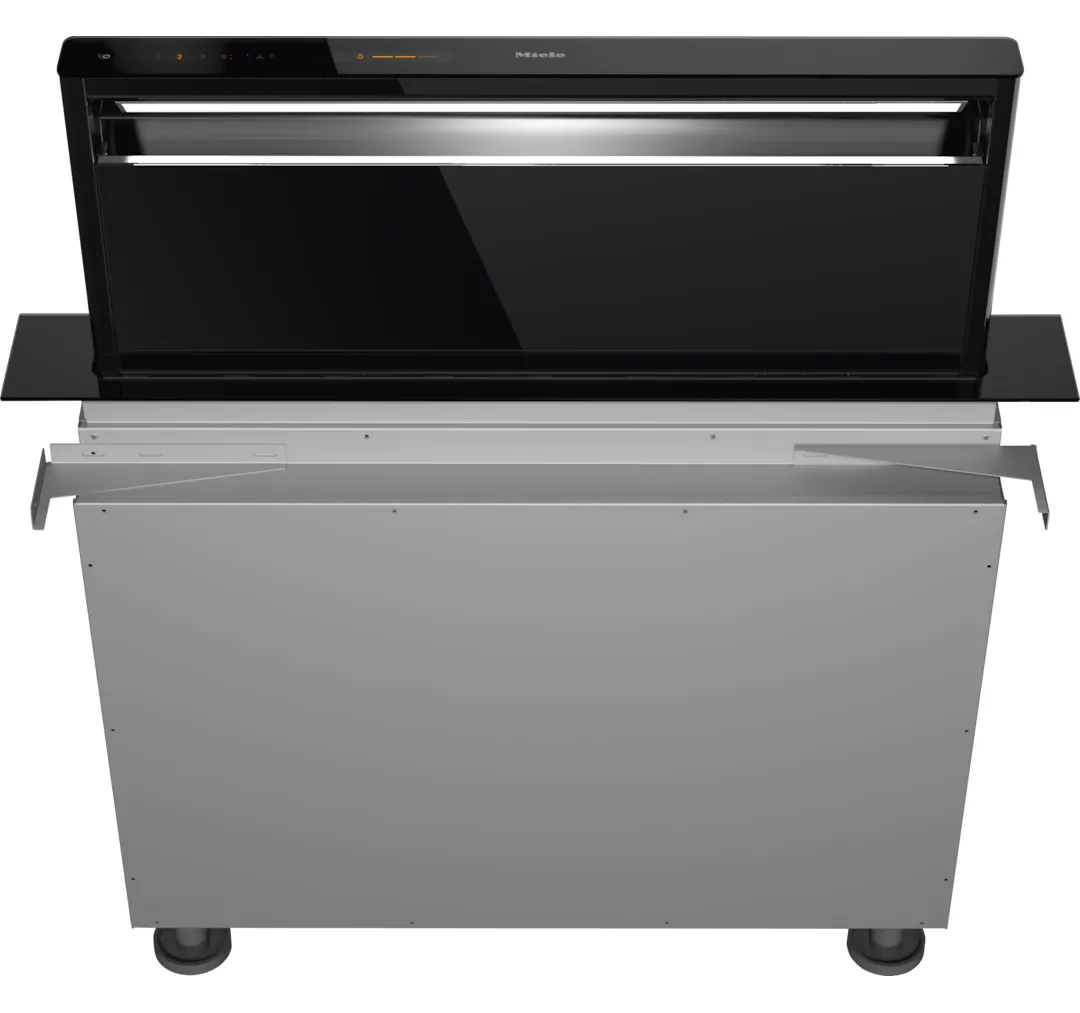

Miele DAD 4841 Range Hood

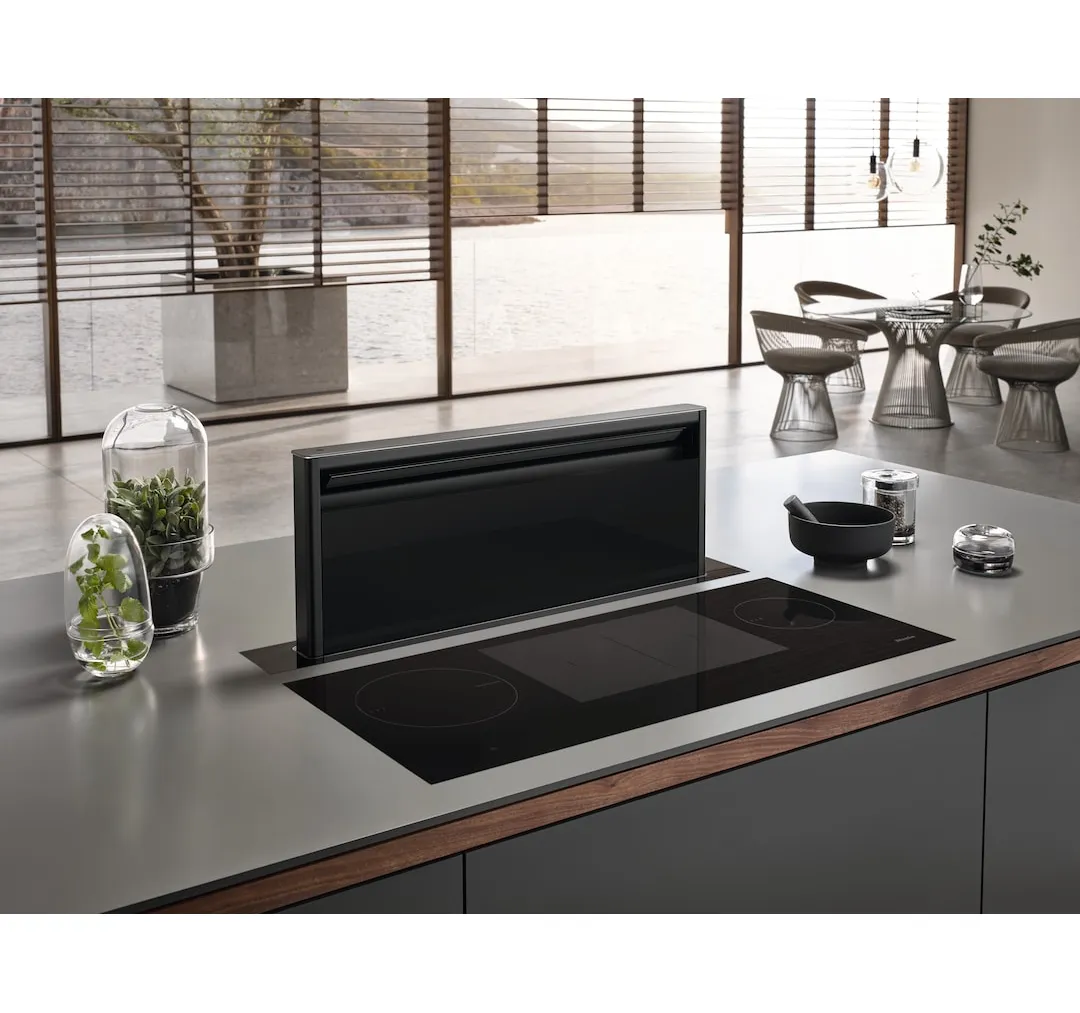

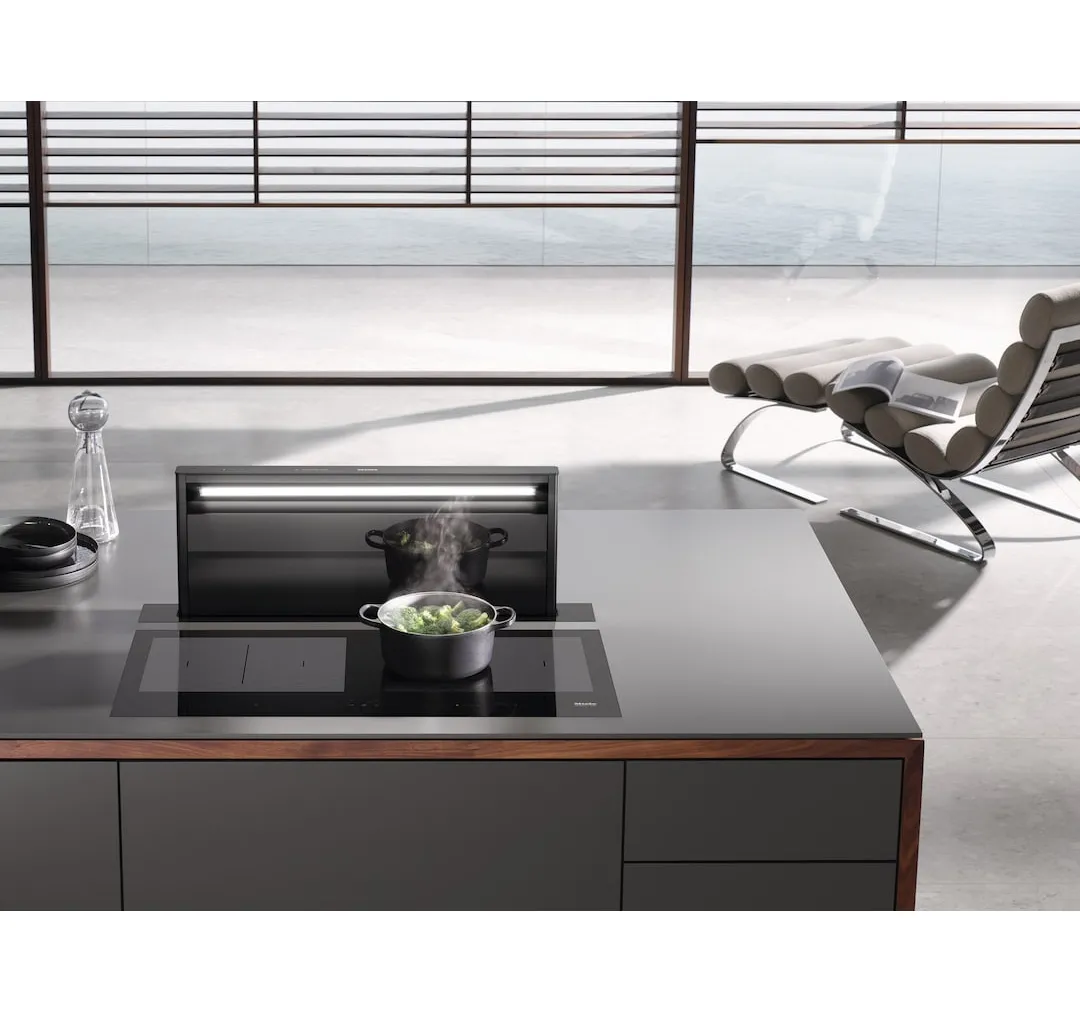

• A vent rises from the countertop
• 91.6 cm
• Recirculation mode with optional DKF30-P or DKF30-R activated carbon filter—additional charge applies
• Con@ctivity 3.0: A wireless mechanism for turning the Miele range hood on and off via the cooktop. Available on select models.

General Information

Model Number

DAD 4841 Black/White

Manufacturer Part Number

12440700

EAN Number

4002516761679

Marketing Rate

Gold

Operating Modes

Type of Air Guide

Can be retrofitted

Recirculation conversion kit (order separately)

DUP 150, DUU 600

Activated carbon filter (order separately)

["DKF 30-P", "DKF 30-R"]

Design

Color

Obsidian Black

Tip Extraction

User Comfort

Miele@home

Connectivity

Yes

Electronic Controls

Touch controls on glass

Controls

SmartControl

Power Levels (number excluding booster level)

3

Amplification levels

2

Operating time: 5/15 minutes.

Grease filter saturation indicator

Activated carbon filter saturation indicator

Motor-driven range hoods

Easy-to-clean hood interior – CleanCover

Extras

Google Voice Control

Push notifications

Remote Update

Smart Home Integration

Efficiency

Energy Efficiency Rating (A+++ to D)

A

Annual Energy Consumption in kWh/year

41.6

Dynamic fluid efficiency rating

A

Lighting efficiency rating

A

Grease filtration efficiency rating

B

Power Management System

Filtration System

Number of dishwasher-safe stainless steel grease filters (10 layers)

2

Lighting

Number x Width

1 x 11.2 watts

Light intensity inLx

400 lux

Color temperature inK

3,500 Kelvin

Dimmer function

Airflow

Airflow at Level 1 (m³/h) according to EN 61591

200

Airflow at Level 2 (m³/h) according to EN 61591

340

Airflow rate, Level 3 (m³/h) according to EN 61591

440

Airflow at Booster Level 1 (m³/h) per EN 61591

600

Airflow with Stage 2 booster (m³/h) per EN 61591

640

Sound power level 1 (dB(A) re 1 pW) according to EN 60704-3

44

Sound power level 2 (dB(A) re 1 pW) according to EN 60704-3

57

Sound power level 3 (dB(A) re 1 pW) according to EN 60704-3

62

Sound power level at booster level 1 (dB(A) re 1 pW) in accordance with EN 60704-3

70

Sound power level at booster level 2 (dB(A) re 1 pW) according to EN 60704-3

72

Sound pressure at Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13

30

Sound pressure at Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13

43

Sound pressure level 3 (dB(A) re 20 µPa) according to EN 60704-2-13

49

Sound pressure in booster stage 1 (dB(A) re 20 µPa) in accordance with EN 60704-2-13

56

Sound pressure with booster, Level 2 (dB(A) re 20 µPa) in accordance with EN 60704-2-13

58

Airflow

Airflow at Level 1 (m³/h) according to EN 61591

160

Airflow at Level 2 (m³/h) according to EN 61591

320

Airflow at Level 3 (m³/h) according to EN 61591

415

Airflow at Booster Level 1 (m³/h) per EN 61591

520

Airflow with Level 2 booster (m³/h) per EN 61591

555

Sound power level 1 (dB(A) re 1 pW) according to EN 60704-3

50

Sound power level 2 (dB(A) re 1 pW) according to EN 60704-3

64

Sound power level 3 (dB(A) re 1 pW) according to EN 60704-3

69

Sound power level at booster level 1 (dB(A) re 1 pW) in accordance with EN 60704-3

75

Sound power level at booster level 2 (dB(A) re 1 pW) according to EN 60704-3

76

Sound pressure at Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13

37

Sound pressure at Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13

50

Sound pressure level 3 (dB(A) re 20 µPa) according to EN 60704-2-13

56

Sound pressure in booster stage 1 (dB(A) re 20 µPa) in accordance with EN 60704-2-13

61

Sound pressure with booster, Level 2 (dB(A) re 20 µPa) in accordance with EN 60704-2-13

62

Safety

Safety Shutdown

Single-layer safety glass (ESG)

Technical Specifications

Canopy Width (inches) (mm)

916

Hood Overhang Depth in Inches (mm)

170

Net Weight in kg

34

Power cord length in meters

150

Standard plug installed

Total rated load in kilowatts

0.251

Voltage in V

230

Fuse rating in A

10

Frequency in hertz

50

Number of phases

1

Installation Notes

Suction pipe connection diameter in mm

150

Optimal pairing with cooktops, subject to availability

KM 7689 Florida; KM 7684 Florida

Bottom exhaust pipe

EAN

4002516761679
