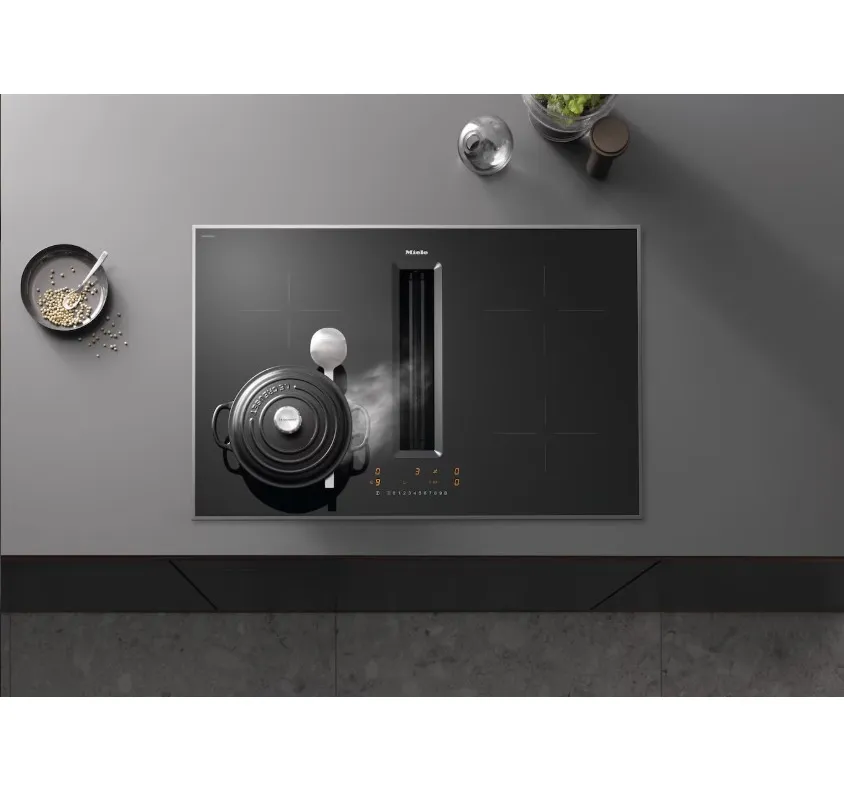

Miele KMDA 7272 U Silence Built-In Induction Cooktop with Range Hood, 80 cm

• 80-cm-wide induction cooktop
• 4 burners
• Built-in range hood
• Integrated range hood in the center
• A recirculation kit and charcoal filter can be added for an additional charge

General Information

Model Number

KMDA 7272 FR-U Silent

Manufacturer Part Number

12246260

EAN Number

4002516658054

Silver Marketing Rate

Type

Induction cooktop with built-in range hood

Operating Modes

Air recirculation with optional accessories

DFK-xxxx, DUU 1500, DUU 600

Unguided air circulation ( Plug & Play installation)

Design

Elegant glass-ceramic surface

Frameless—surface-mounted

Ceramic surface color

Black

Stainless steel frame

Flat-fit exhaust fan

Grill cover color

Black

Cooking Zone Details

Number of Cooking Zones

4

Maximum number of pans

4

First cooking zone

Mode

Front left

Type

Dual-ring

Size in mm

Ø 110–220

Maximum rating inW

2300

Maximum booster power in watts

3,000

Second cooking zone

Mode

Rear left

Type

Dual-ring burner

Size in mm

Ø 100–190

Maximum rating inW

1400

Maximum Booster Power in Watts

2,100

Third cooking zone

Mode

Rear right

Type

Dual-ring

Size in mm

Ø 110–220

Maximum rating inW

2300

Maximum booster power in watts

3,000

Fourth cooking zone

Mode

Front right

Type

Dual-ring

Size in mm

Ø 100–190

Maximum rating inW

1400

Maximum Booster Power in Watts

2,100

User convenience

Operation via sensor controls

Comfort Select Plus

Display Color

Yellow

Connectivity

Digital power level display

Fixed pan detection

Keep Warm

Stop-and-Go Function

Memory function

Minute Timer

Safety Shut-Off

Automatic heating

Customizable settings (e.g., buzzers)

Operating time: 5/15 minutes.

Grease filter saturation indicator

Activated carbon filter saturation indicator

Efficiency

Quiet motor

Cleaning and Maintenance

Easy-to-clean ceramic glass

Easy-to-clean awning interior – CleanCover

Airflow

Airflow at minimum level (m³/h) according to EN 61591

145

Airflow at maximum level (m³/h) according to EN 61591

465

Airflow at the intensive level (m³/h) according to EN 61591

510

Sound power at minimum level (dB(A) re 1 pW) according to EN 60704-3

47

Maximum sound power level (dB(A) re 1 pW) according to EN 60704-3

68

Intensive noise level (dB(A) re 1 pW) according to EN 60704-3

70

Minimum sound pressure level (dB(A) re 20 µPa) according to EN 60704-2-13

34

Maximum sound pressure level (dB(A) re 20 µPa) according to EN 60704-2-13

55

Intensive noise pressure level (dB(A) re 20 µPa) according to EN 60704-2-13

57

Safety

Safety Shutdown

Lockout function

System Lock

Integrated Cooling Fan

Overheating protection

Residual heat indicator

Technical Specifications

Dimensions (Width x Height x Depth) in mm

800 x 194 x 520

Dimensions in mm (width)

800

Dimensions in mm (height)

194

Dimensions in mm (depth)

520

Chassis height including connection box in mm

194

Cutout dimensions in mm (width) with top-mounted installation

780 mm

Cutting dimensions in mm (depth) with top mounting

500 mm

Weight in kg

16

Total rated load in kilowatts

7,500

Voltage (V)

230

Frequency in hertz

50–60

Power supply cable length in meters

1.6

Included accessories

Power cord

Yes

DKF 35-P activated carbon filter

Plug & Play adapter
