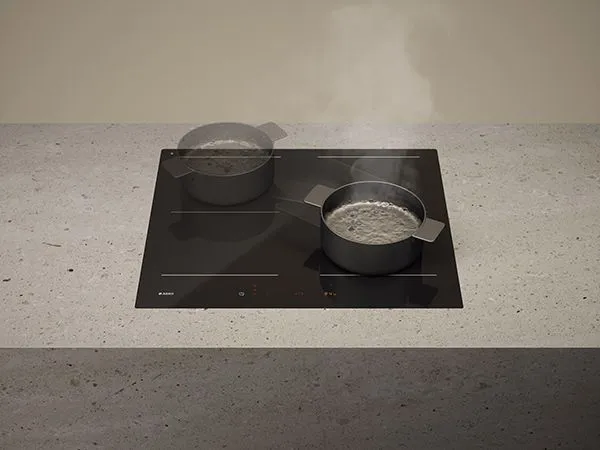

QuadraFlex 60-cm Induction Cooktop, Model ASKO HI5643FMG1, ASKO

Seamless control meets modern design with ASKO’s new Series 5 induction cooktops. Made of matte black ceramic glass, they offer four efficient cooking zones and can be installed flush with the countertop or in a recessed configuration for an elegant finish. The exclusive Dynamic Slide control ensures smooth operation, while the Move and Auto Bridge functions allow for seamless adjustment and transfer of settings across different cookware. With preset PLUS Menu cooking programs and connectivity between the cooktop and range hood, you’ll easily enjoy precise results and a fresher kitchen.

The Cooktop and Range Hood

Your ASKO range hood won’t just turn on when you start cooking—it will also be able to “read” what’s happening on the cooktop and adjust its performance accordingly. The range hood is, in fact, another part of the system—but one that focuses on cleanliness and comfort, right at the heart of your home.

Transfer Function

With the Transfer Function, when you move a pot to a new zone, all settings—including the temperature and timer—are automatically transferred to the new zone. No manual adjustments or distractions are needed. Just smooth, effortless cooking.

Technical Specifications

Construction and Performance

Cooktop Material
Ceramic Glass
Frame Design
Frameless
Number of Cooking Zones
4
PowerBoost function
Yes
Front left zone type
Real Bridge™ square zone
Dimensions of the front left zone
190×220
Power in the front left zone
2,200 watts
Power output of the front left zone
3,600 watts
Front right zone type
Real Bridge™ square zone
Right front zone dimensions
190×220
Power in the front right zone
2,200 watts
Power Boost for the Front Right Zone
3,600 watts
Rear Left Zone Type
Real Bridge™ square zone
Dimensions of the left rear zone
190×220
Power in the left rear zone
2,200 watts
Power Boost for the Left Rear Zone
3,600 watts
Rear right zone type
Real Bridge™ square zone
Rear right zone dimensions
190 x 220
Power in the rear right zone
2,200 watts
Power Boost for the Rear Right Zone
3,600 watts

Usage and Flexibility

Bridge function
Flex Induction Bridge™ Technology
Functions
Frying
Automatic Heating
Induction Bridge
Grill
Boiling
Simmering
Steaming
AutoBridge
Pot Detection
Automatic Detection
Multi-timer
Yes
Delay function
Yes
Wi-Fi
Yes
ConnectLife: Monitoring and Control at Your Fingertips
ConnectLife

Interaction and Control

Control Panel
SliderTouch, Control at Your Fingertips

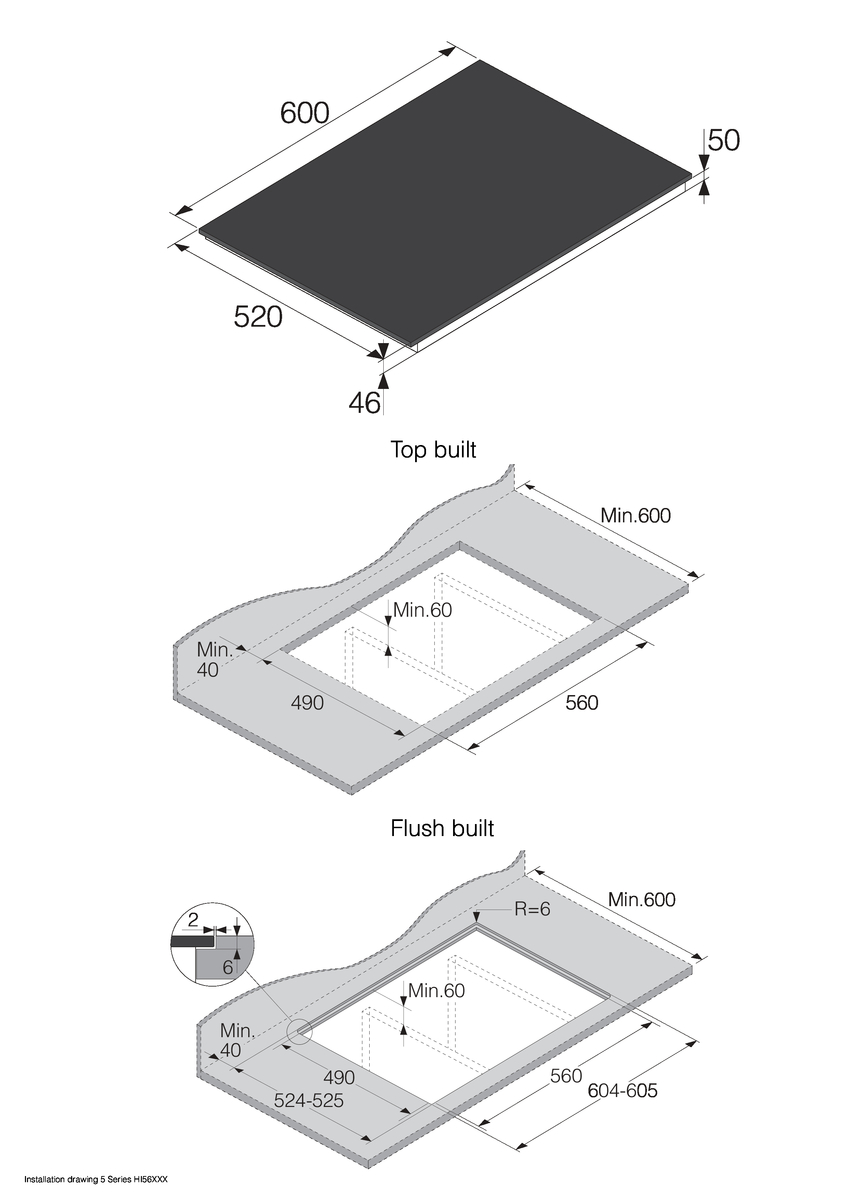

Design and Integration
Edges
Soft-edged cutouts
Minimum niche width
560 mm
Maximum installation niche width
562 mm
Minimum niche height
68 mm
Depth (including clearance between walls)
490 mm
Hob installation type
Top-mounted, flush installation

Safety and Maintenance
Residual heat indicator
Yes

Technical Specifications
Voltage (V)
220–240 V
Frequency
50 Hz, 60 Hz
Time required for the device to reach the relevant state or low-power mode
1 minute
Standby power consumption via the cooktop’s network (with Wi-Fi)
0.701 watts
Power consumption in standby mode for the cooktop
0.3 watts

Dimensions
Height
52 mm
Width
600 mm
Depth
520 mm
Net weight
8.6 kg

Logistics Information
Package Height
135 mm
Package width
764 mm
Package depth
684 mm
Gross weight
10.7 kg
EAN code
3838782924972
Product Code
745341
