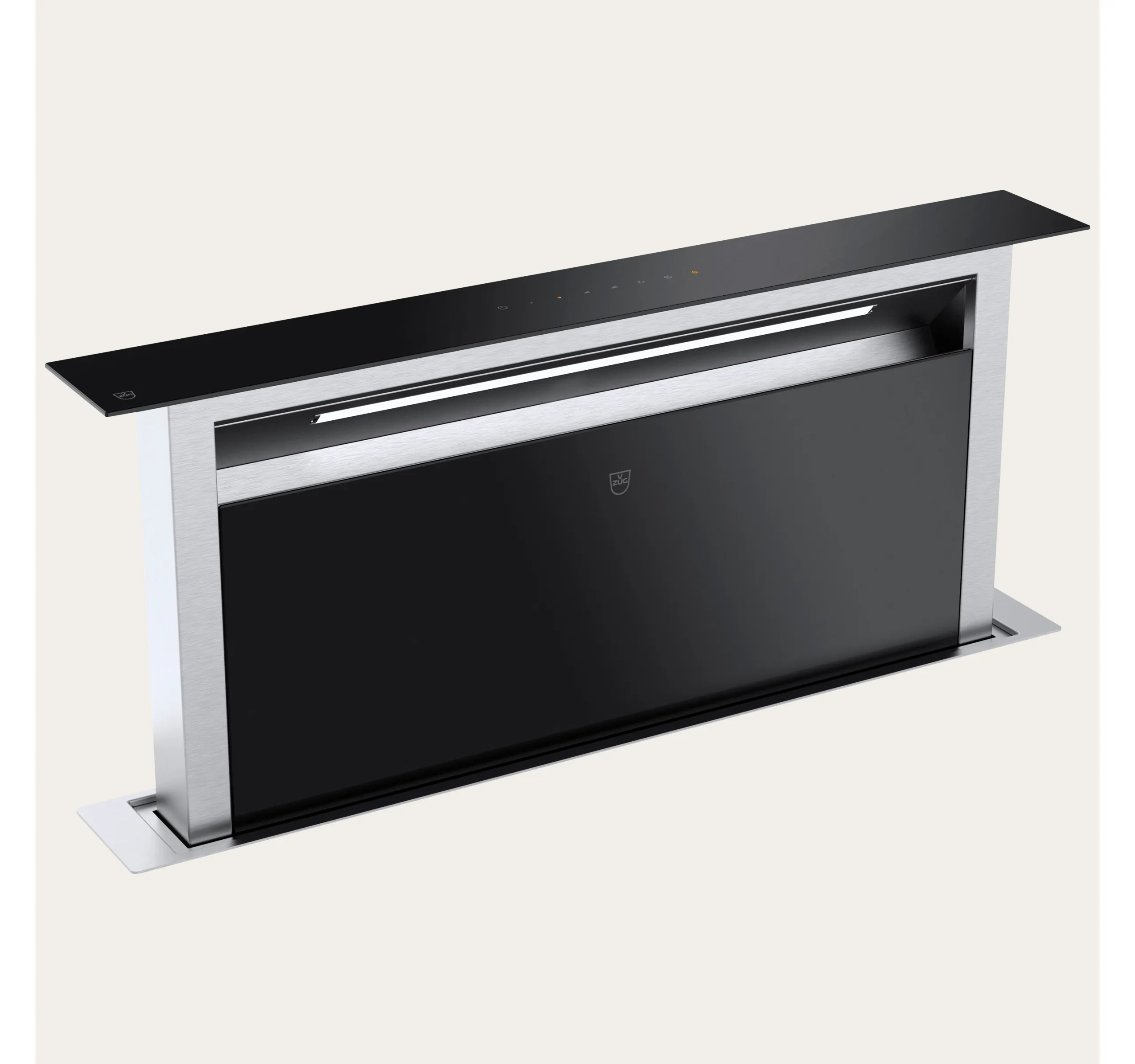

91-cm built-in range hood, model DSTS9g, distributed by V-ZUG

Display and Operation

Controls

Touch Controls

Fan Speed Display

Yes

Lighting Technology

LED

Number of Light Sources

1

Range Hood Features

Grease filter cleaning indicator

Additional Information

Yes

Hood Design

Drift

LED Light

LED strip

Activated Carbon Filter Saturation Indicator

Additional Information

Yes

Power Levels

3 + i

Light Dimming

Additional Information

Two-stage

Grease filter

2

Side Exhaust

Additional Information

Yes

Non-return valve, integrated/attached

Includes

Also available with/as (*)

Recirculating air filter

• Long-life activated carbon filter

• Standard activated carbon filter

Exhaust air

• No

Recirculating air

• Yes

(*) Not all combinations may be available. Please contact your store for advice.

Dimensions

Unit Height

650 mm

Appliance width

880 mm

Device depth

120 mm

Maximum depth of the device

120 mm

Power

Power consumption—off in standby mode

0.49 watts

Light sources must be replaced by a professional

Yes

Energy efficiency rating

A

Annual energy consumption

56.9 kWh

Lighting Efficiency Rating

A

Dynamic Fluid Efficiency

29.3

Fluid dynamic efficiency rating

A

Connection Type (1)

220–240 V ~

Nominal Light Output (Quantity x Watts )

1x5 watts

Frequency (1)

50 Hz

Connected loads (1)

0.276 kW

Fuse protection (1)

10 A

Plug type

CH Type 12

Connection cable

1.5 meters

Additional Data

Intake noise level, Level 2

49.0 decibels (A)

Intake noise level, Level 3

57.0 decibels (A)

Swirl Air Noise Level, Level 2

49.0 decibels (A)

Noise output (swirl air), Level 3

55.0 decibels (A)

Pump Airflow, Level 2

280 cubic meters per hour

Airflow from blower, Level 3

440 cubic meters per hour

Recirculation air flow, Level 2

290 cubic meters per hour

Recirculated air flow rate, Level 3

440 m³ /h

Light color in Kelvin

Additional Information

4,000

Maximum approximate color temperature in Kelvin

4,000

Exhaust Air Connection (Diameter)

150 mm

Luminous efficacy

40

Lighting on the cooking surface

200 lux

Grease Absorption Rating

D

Fan Airflow, Intensive Setting

720 m³ /h

Airflow from the blower, maximum setting

440 m³ /h

Airflow from blower, minimum setting

200 m³ /h

Recirculated air output, intensive setting

630 cubic meters per hour

Recirculated air output, maximum setting

440 cubic meters per hour

Recirculated air output, minimum setting

200 m³ /h

Fan noise, high setting

68 decibels (A)

Fan noise level, maximum setting

57 decibels (A)

Airflow noise level, minimum setting

43 decibels (A)

Air circulation noise, high setting

69 decibels (A)

Air recirculation noise level, max. setting

55 decibels (A)

Recirculation noise output, minimum setting

42 decibels (A)

Fresh air/exhaust flange connection

No

Connection to window contact switch

No

Connection to comfort ventilation system

Additional Information

No

Motor(s)

1

Motor Output

270 watts
